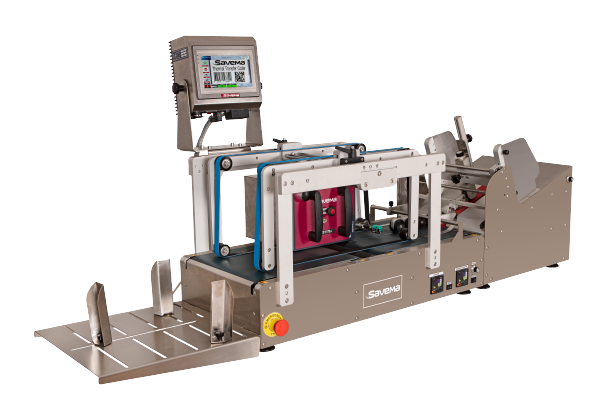

SAVEMA Feeder & Conveyor Belt

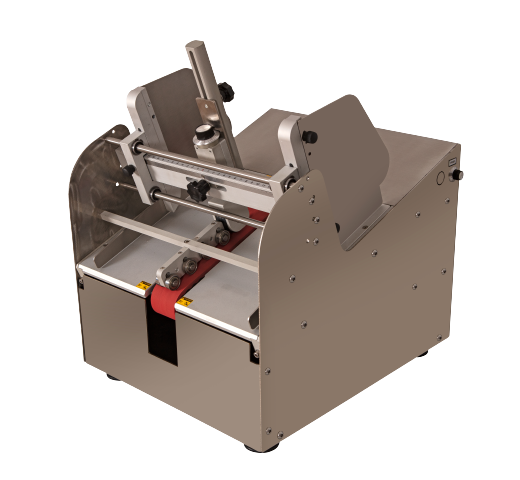

100-A1 Friction Feeder

SAVEMA feeders are designed to work with conveyor belt that placed in front of for serving in different industries. While products are moving continuously or intermittently, we are able to mark with Inkjet, Thermal Transfer Printers and Labelling. We are adjusting marking place with very sensitive sensors. It is very easy to use our systems. It can be mounted barcode readers, image control systems, address labelling&printing tools to our systems.

Technical Specifications Request a Quote

About the Product

Applications that can be used;

Postal service and cargo.

With Ink-jet Marking&Coding

With Labelling Machine Marking&Coding

Folding Machine feeding

Invoice and magazine feeding

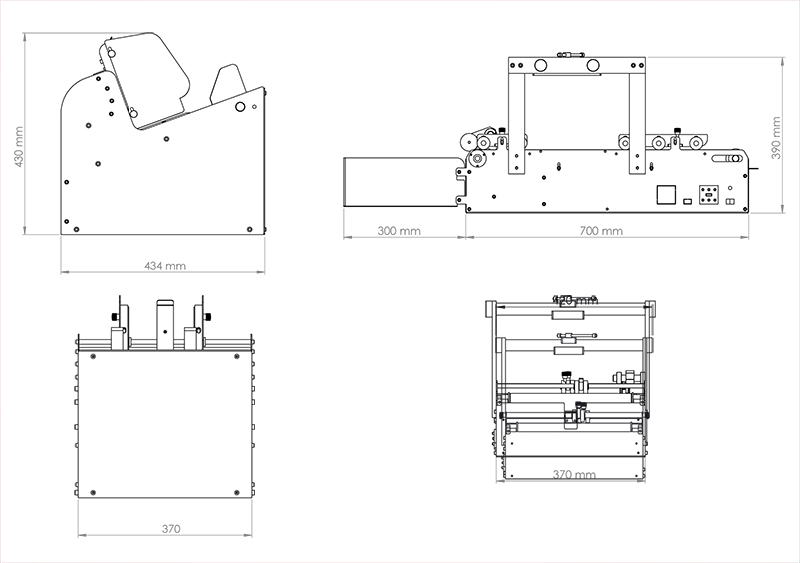

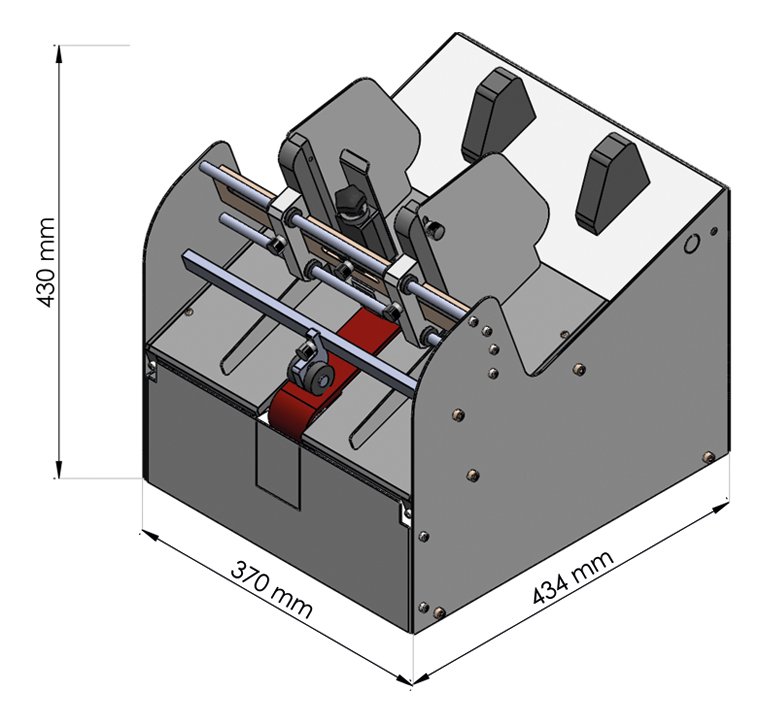

Technical Specifications

Minimum width of product: 50mm (W) x 80mm (L)

Maximum width of product: 300mm (W) x 400mm (L)

Min. – Max. Product Thickness: 0,1mm – 4mm (depend on product type)

Belt Speed: 600mm/sec.

Power: 100-120V 50-60 Hz
              200-240V 50-60 Hz

Weight: 20 Kg.
