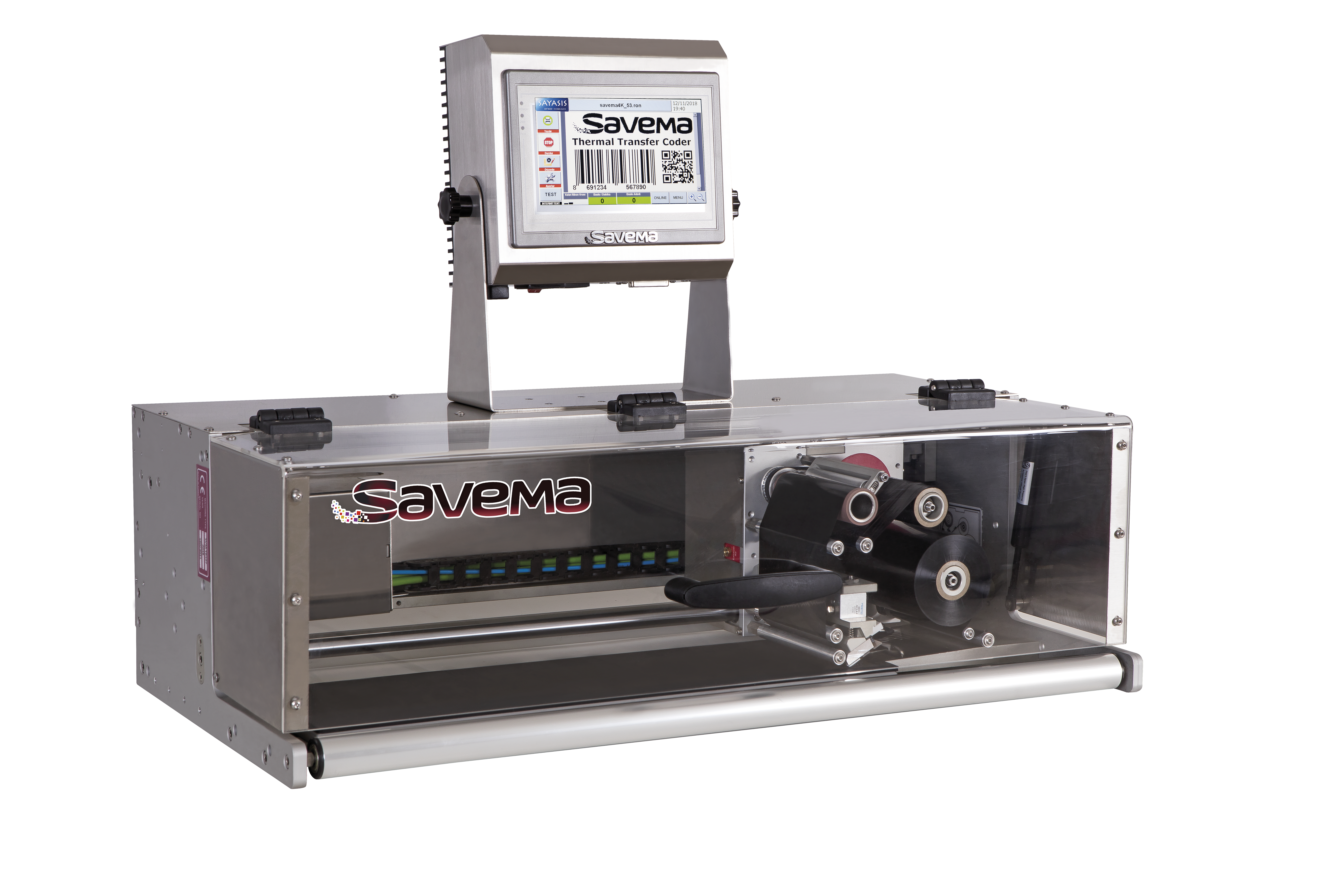

SAVEMA Traverse Thermal Transfer Printers

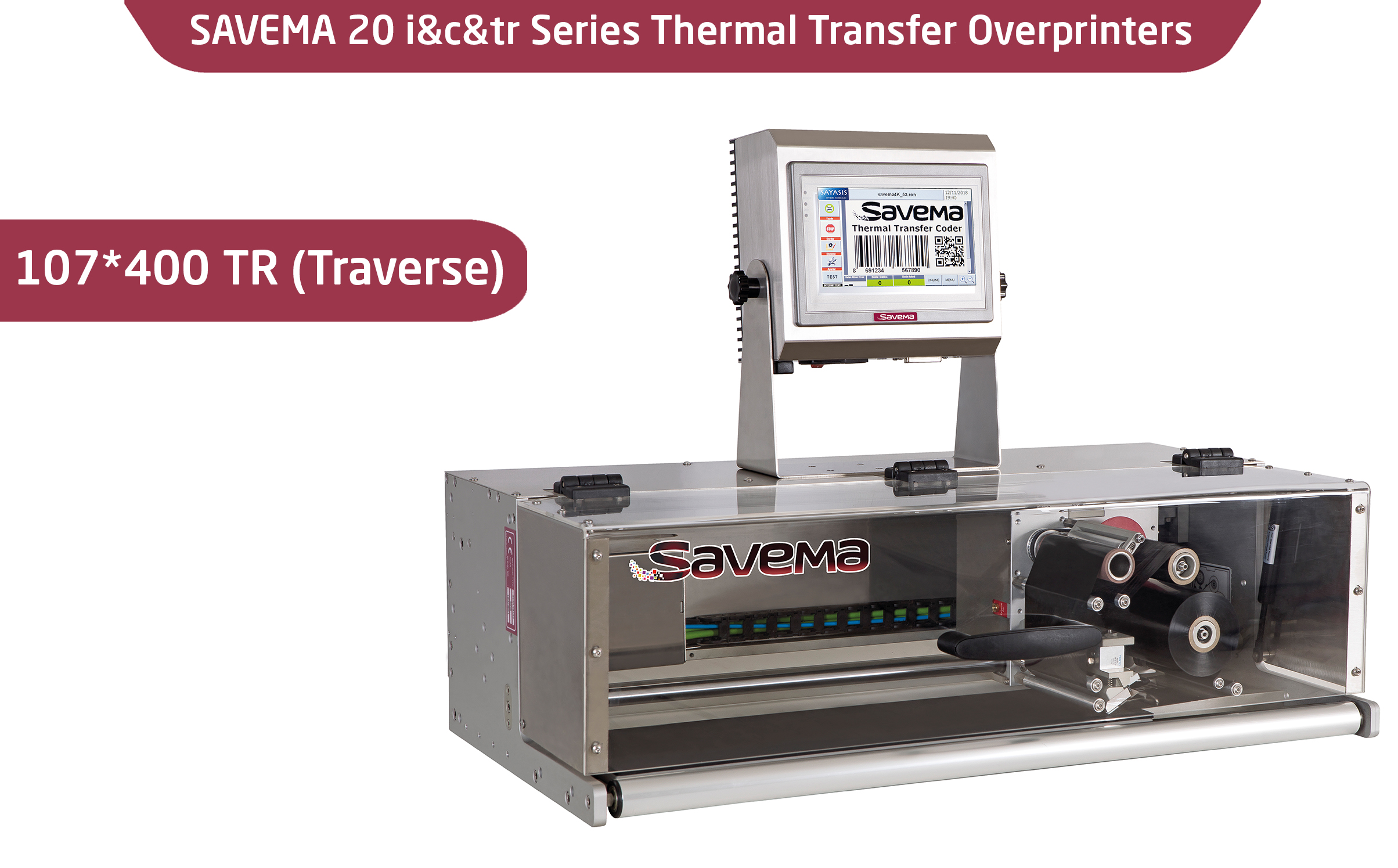

107*400 TR
The high performance, low-cost SAVEMA Traverse Thermal Transfer Overprinters are versatile enough for printing fixed and variable text, data, and graphics. It is ideal for reproducing bar codes, real-time, sell-by dates, batch numbers, prices, source codes and much more. The special design bracket can be integrated multi-line packages for traversing systems. The units are suitable for all multi-line intermittent applications within the food, pharmaceutical cosmetics, and automobile spare parts industries and have the capability to code all kinds of 1D/2D Barcodes and DataMatrix codes.
About the Product
Robust mechanical design needs no maintanence.
107mm – 400mm print area.
600 m. Ribbon Capacity.
300 dpi (12 dots/mm) Print Quality.
50 - 400mm per/second print speed.
Template Design PC Program "Sayasis S20" all features are free of charge.
Large memory for all label formats to be stored locally.
The USB can be used to transfer messages between printers and through computer too.
Technical Specifications
107mm x 400mm print area.
600 meter ribbon capacity.
Resolution 300 dpi (12 dots / mm)
Print Speed 50 - 400 mm/sec.
7" touch panel color control screen.
90°, 180°, 270° rotate features of the templates.
Memory: 5000 Templates can be stored in the control screen memory.
Power Supply: 100/240V 50/60 Hz.
Programming: Real Date/Time, Text, 1D/2D Barcodes, GS-1 Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency, Database Support, Table Creation Support.
Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPCA, UPC-E…), 2D Barcodes (Datamatrix, QR Code, PDF417, Aztec code…), GS-1 Barcodes (GS1-128, GS1-Datamatrix, GS1-Databar Barcodes)
Communication: RS-232, Ethernet, USB
PC Programme: Sayasis S20 (All Features Free)
SAVEMA 107mm Traverse Printer
THERMAL TRANSFER PRİNTERS 53/107
