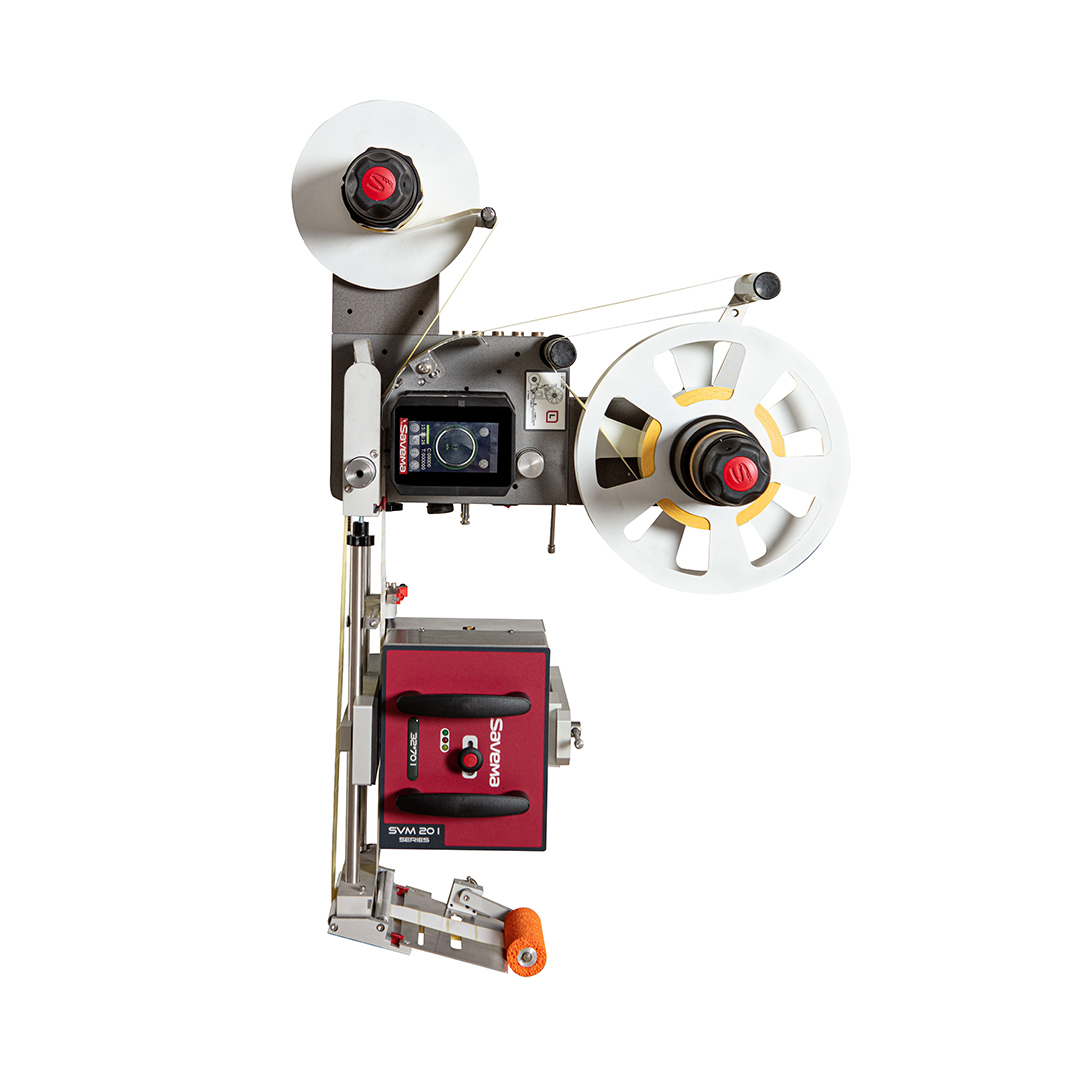

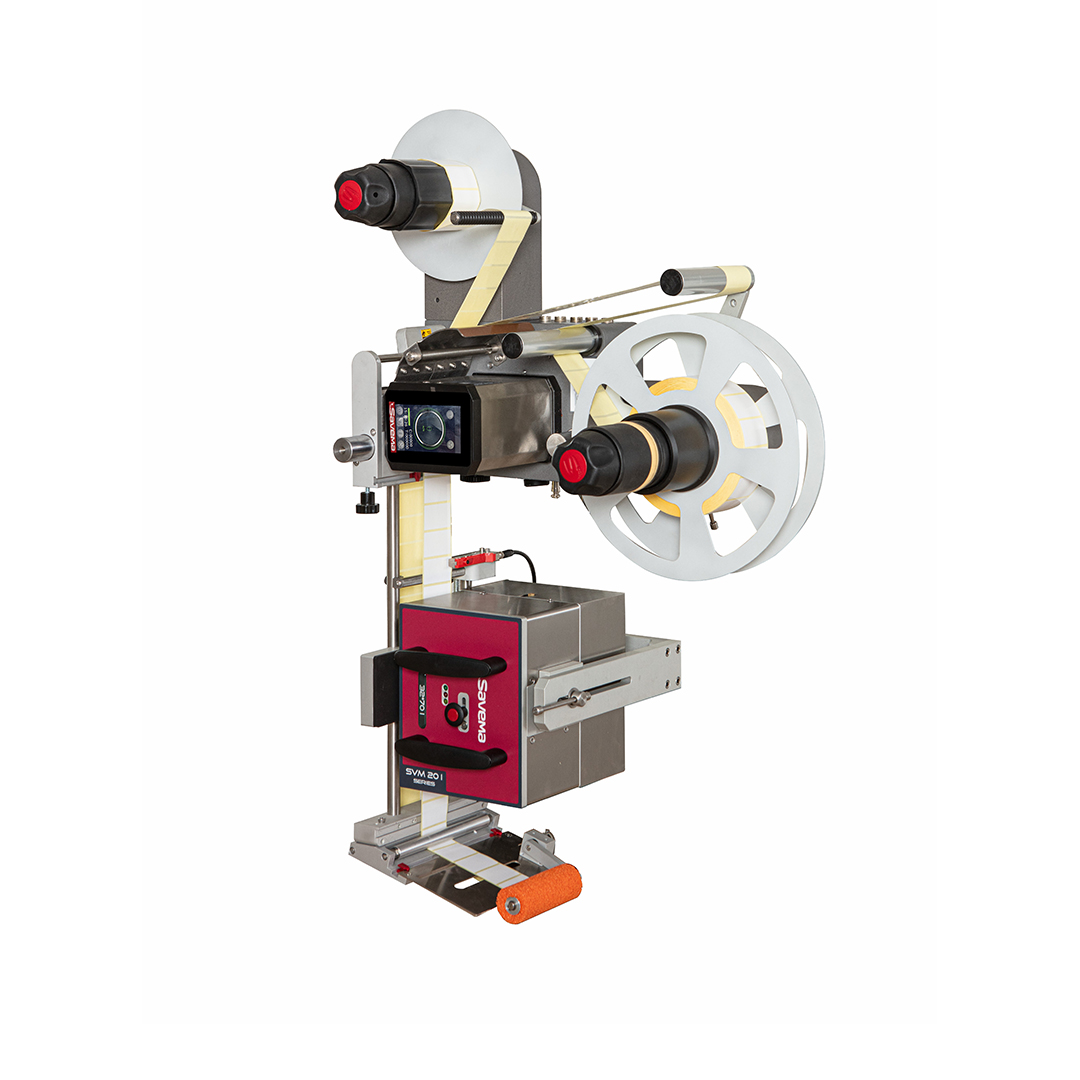

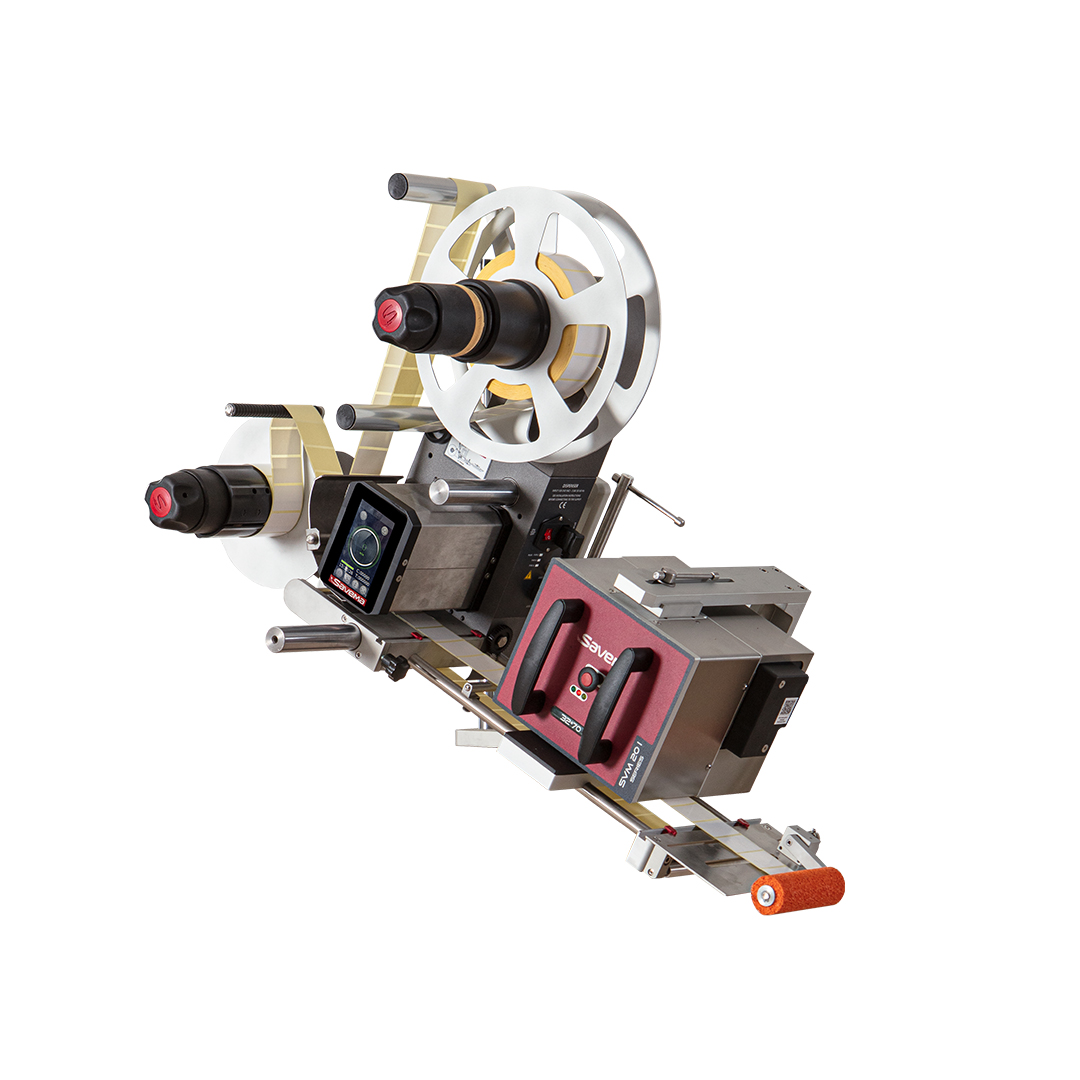

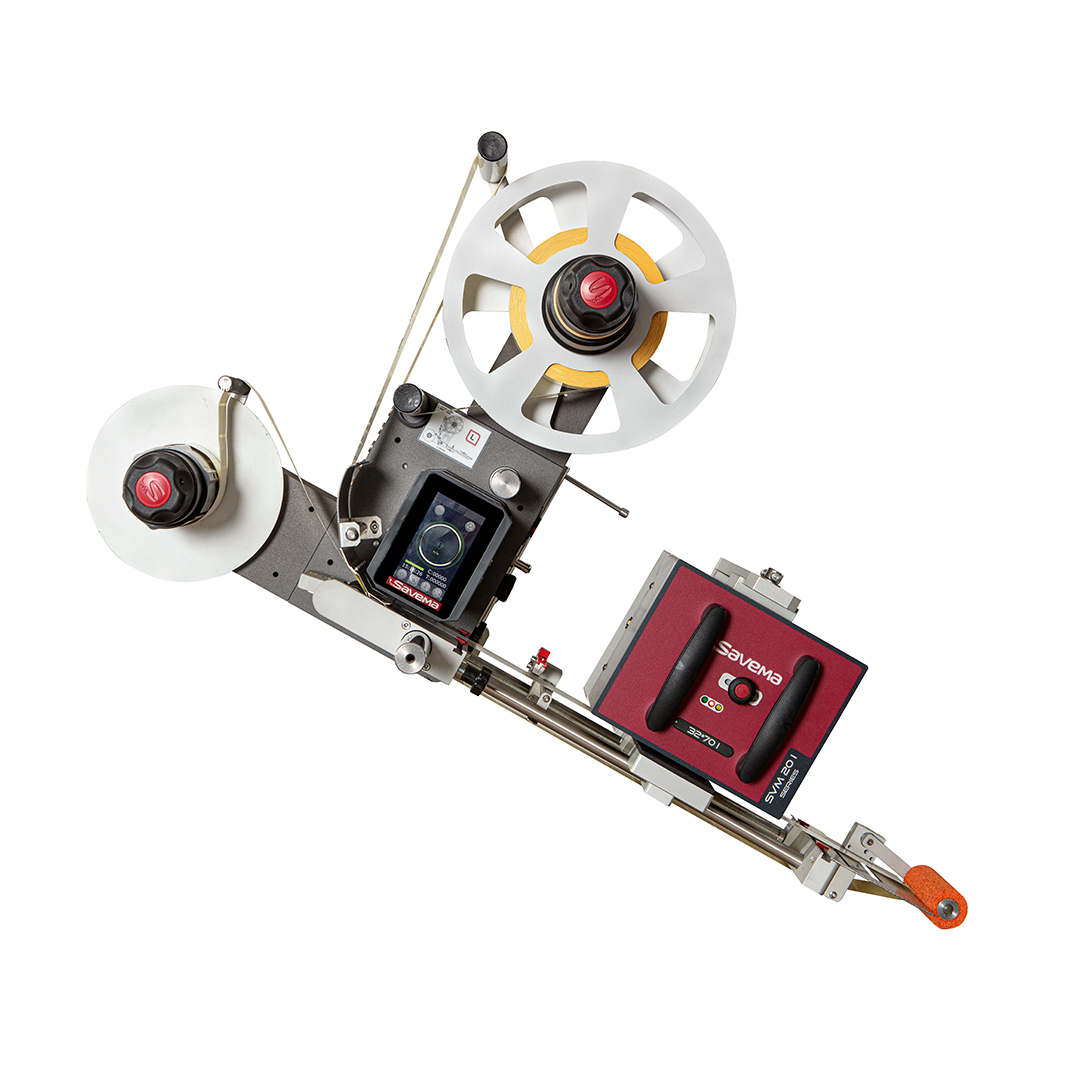

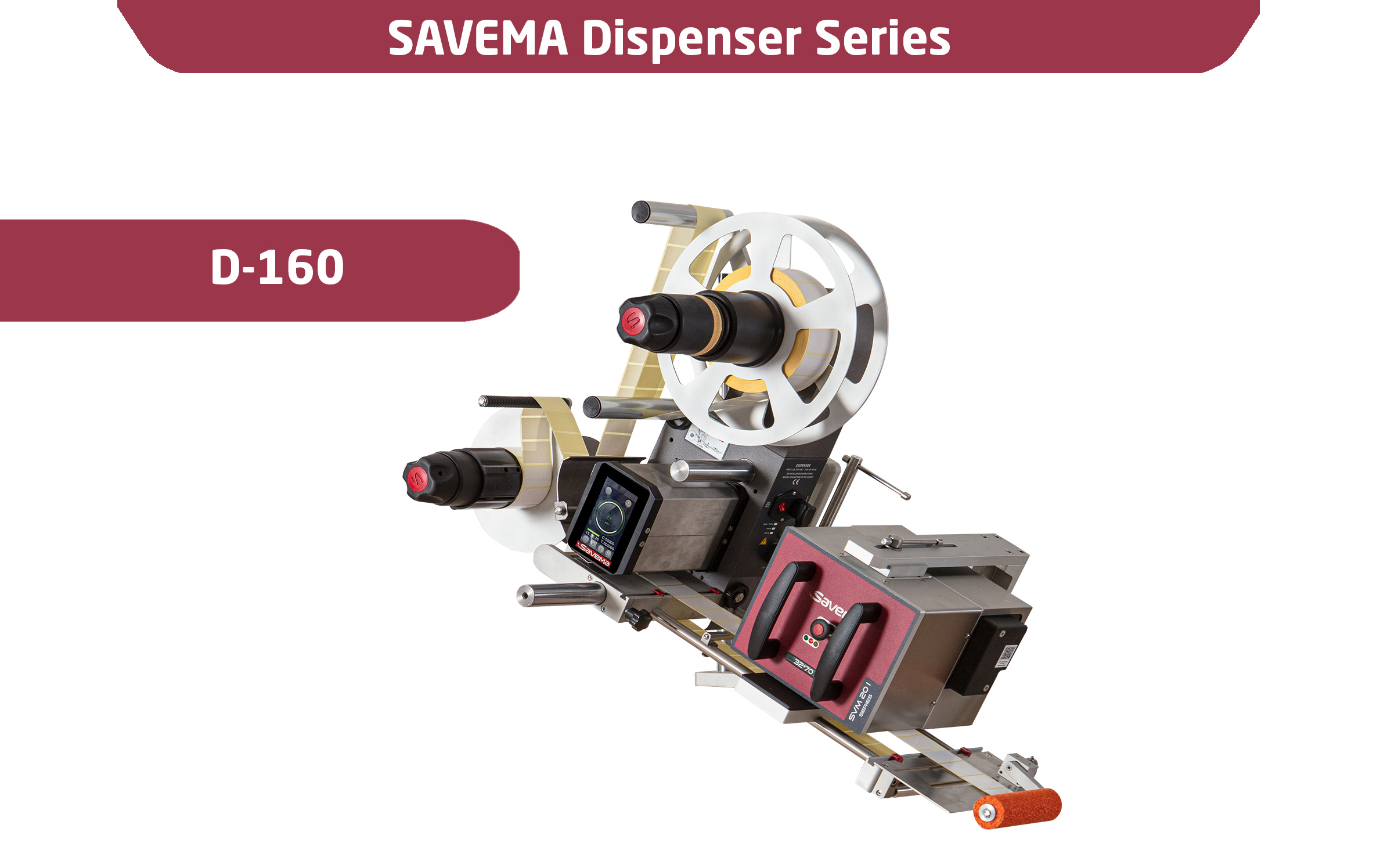

Dispenser D-160
D-160
Printers Can Be Installed SVM 32 Intermittent Printers and SVM 53 Intermittent Printers.
Maximum Label Width : 160mm
Maximum Label roll Diameter : 30cm
MaXimum Label Speed : 45meter/min
Pwer Supply : 100-240V 5.8 A 50-60 Hz. 500W
Weight : 35Kg
Type : Automatic
Blower Mechanism (optional)
Transparent Label Sensor (optional)
About the Product
Maximum Label Width : 160mm
Maximum Label roll Diameter : 30cm
MaXimum Label Speed : 45meter/min
Pwer Supply : 100-240V 5.8 A 50-60 Hz. 500W
Weight : 35Kg
Type : Automatic
Blower Mechanism (optional)
Transparent Label Sensor (optional)
Technical Specifications
Label Speed : Max. 45 meters/min
Power Supply : 100-220V AC, 500W, 50-60 Hz
I/O Interface : Label Feeding Signal Input / Fault Signal Output, Busy Signal Output
Interface(optional) : Modbus RTU, Modbus TCP, Ethernet TCP/IP, Can-Open, Start / Stop Signal
Connection Types : Relay (NPN-PNP) – Photocell (NPN-PNP)
Operation : 4.3” / 272x480 pixel resolution touchscreen, user menu, setting menu, user start/stop, user
administration, manual label feed
Language : Multi-Language System(TR,EN,IT,DE,RU,AR,FR,ES,CS,NL,CN,KO,PT,EL,FA)
Advanced Properties : Working with encoder or without encoder, printer can be connected (optional) blower mechanism can be connected (optional), transparent label sensor (optional), missing label error, label broken error, printer fault error
