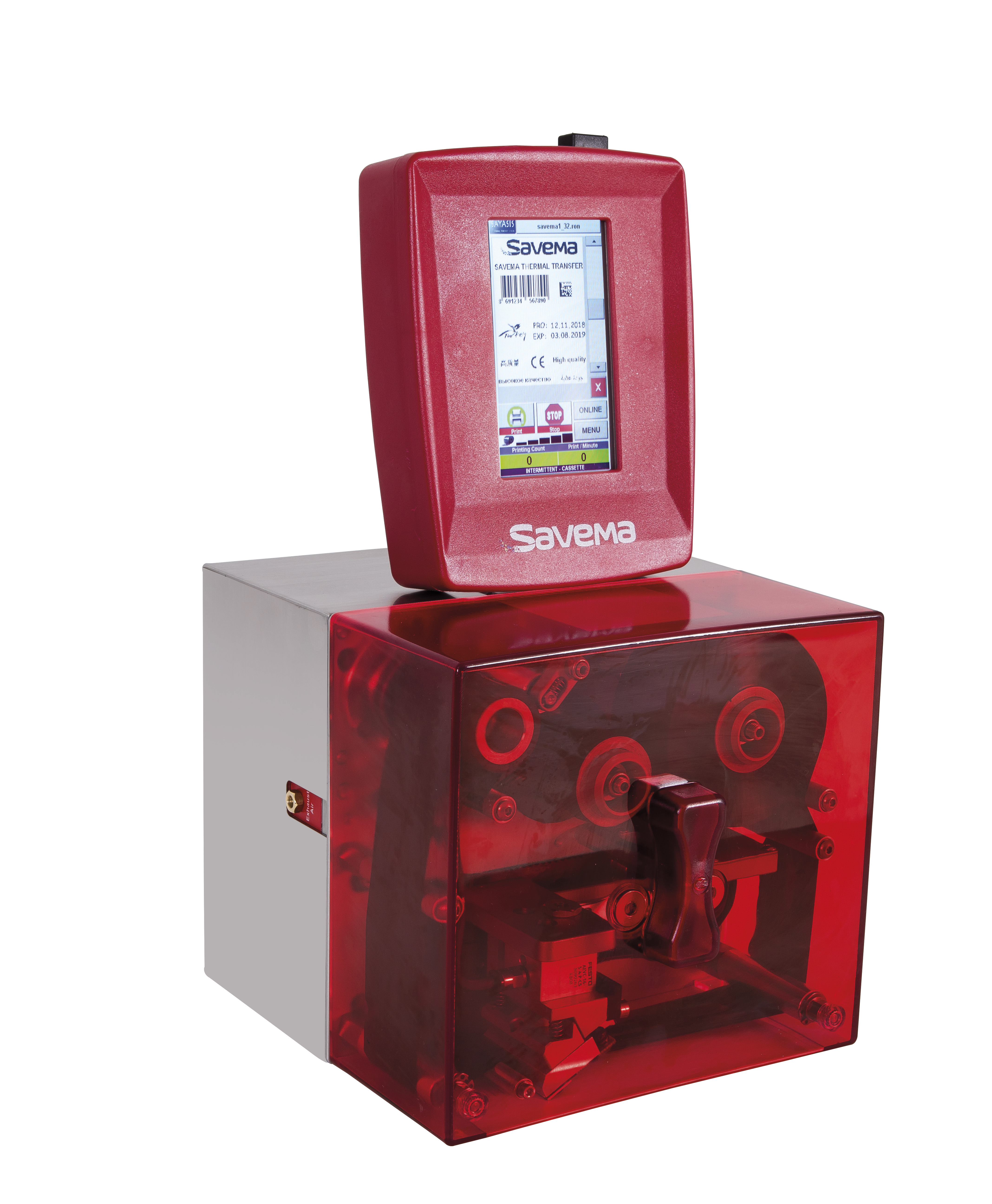

SAVEMA 53 Thermal Transfer Printers
53*40 I

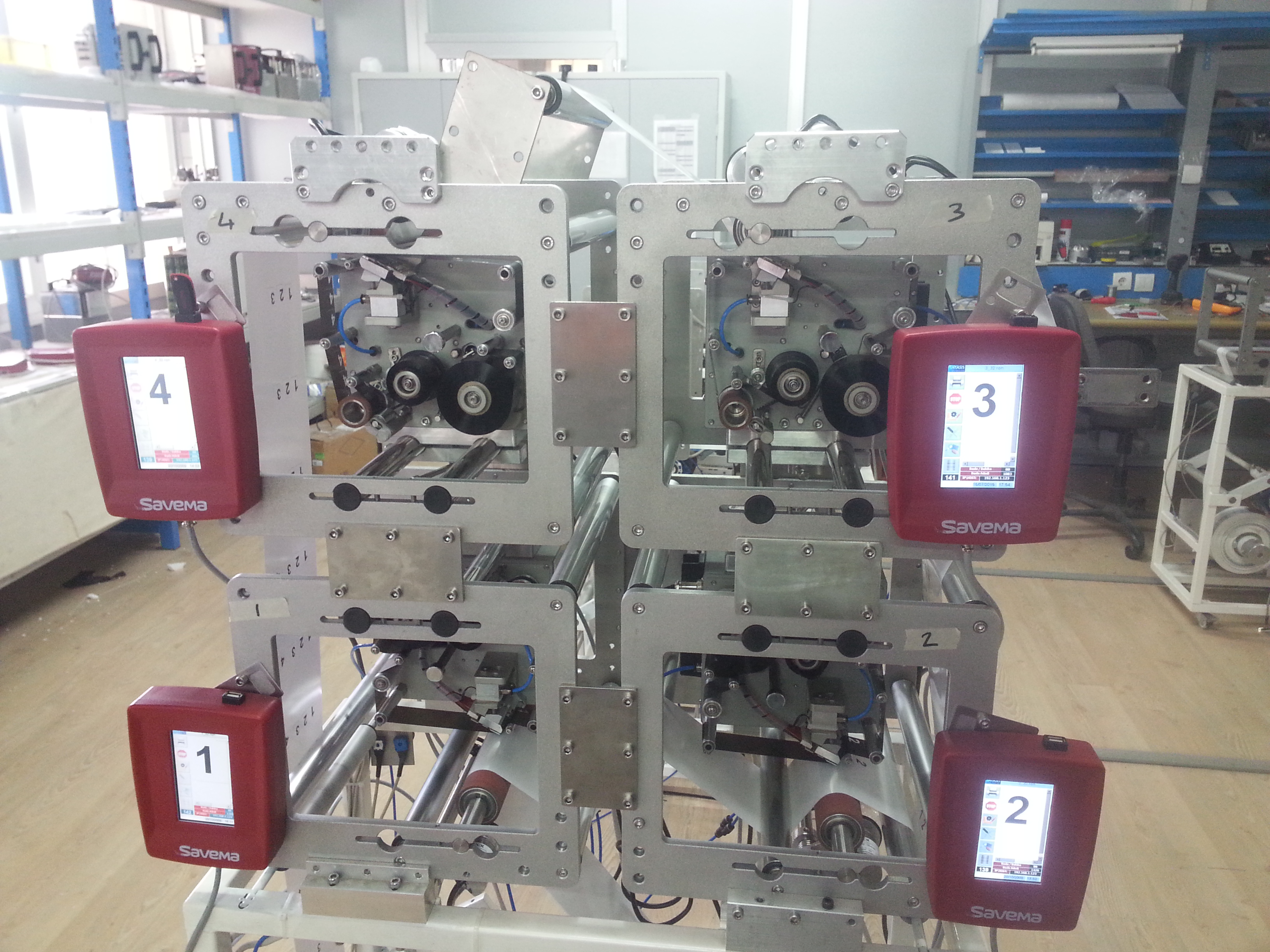

The high performance, cost-effective SAVEMA Thermal Transfer Overprinters (TTOs) are versatile enough for printing fixed and variable text, data, and graphics. It is ideal for reproducing bar codes, real-time, sell-by dates, batch numbers, prices, source codes and much more. Two-component models of brackets (Intermittent & Continuous) can be easily integrated into machines such as vertical and horizontal form-fill-seal systems, primary labelers, thermoformers, and overwrapping equipment. The units are suitable for all intermittent applications within the food, pharmaceutical cosmetics, and automobile spare parts industries and have the capability to code all kinds of 1D/2D barcodes and Datamatrix codes.
About the Product
Robust mechanical design needs no maintanence.
53mm – 40mm for Intermittent Mode print area and no air requirment, magnetic.
600 m. Ribbon Capacity.
300 dpi (12 dots/mm) Print Quality.
50 - 300mm per/second print speed.
Template Design PC Program "Sayasis S20" all features are free of charge.
Large memory for all label formats to be stored locally.
The USB can be used to transfer messages between printers and through computer too.
Technical Specifications
53mm x 40mm Intermittent mode print area.
No air requirement / Magnetic.
600 meter ribbon capacity.
Resolution 300 dpi (12 dots / mm)
Print Speed50 - 300 mm/sec.
4.3" touch panel color control screen.
90 °, 180 °, 270 ° rotate features of the templates.
Memory: 5000 Templates can be stored in the control screen memory.
Power Supply: 100/240V 50/60 Hz.
Programming: Real Date/Time, Text, 1D/2D Barcodes, GS-1 Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency, Database Support, Table Creation Support.
Barcode Types: 1D Barcodes ( EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPCA, UPC-E…), 2D Barcodes (Datamatrix, QR Code, PDF417, Aztec code…), GS-1 Barcodes ( GS1-128, GS1-Datamatrix, GS1-Databar Barcodes).
Communication: RS-232, Ethernet, USB
PC Programme: Sayasis S20 (All Features Free)
