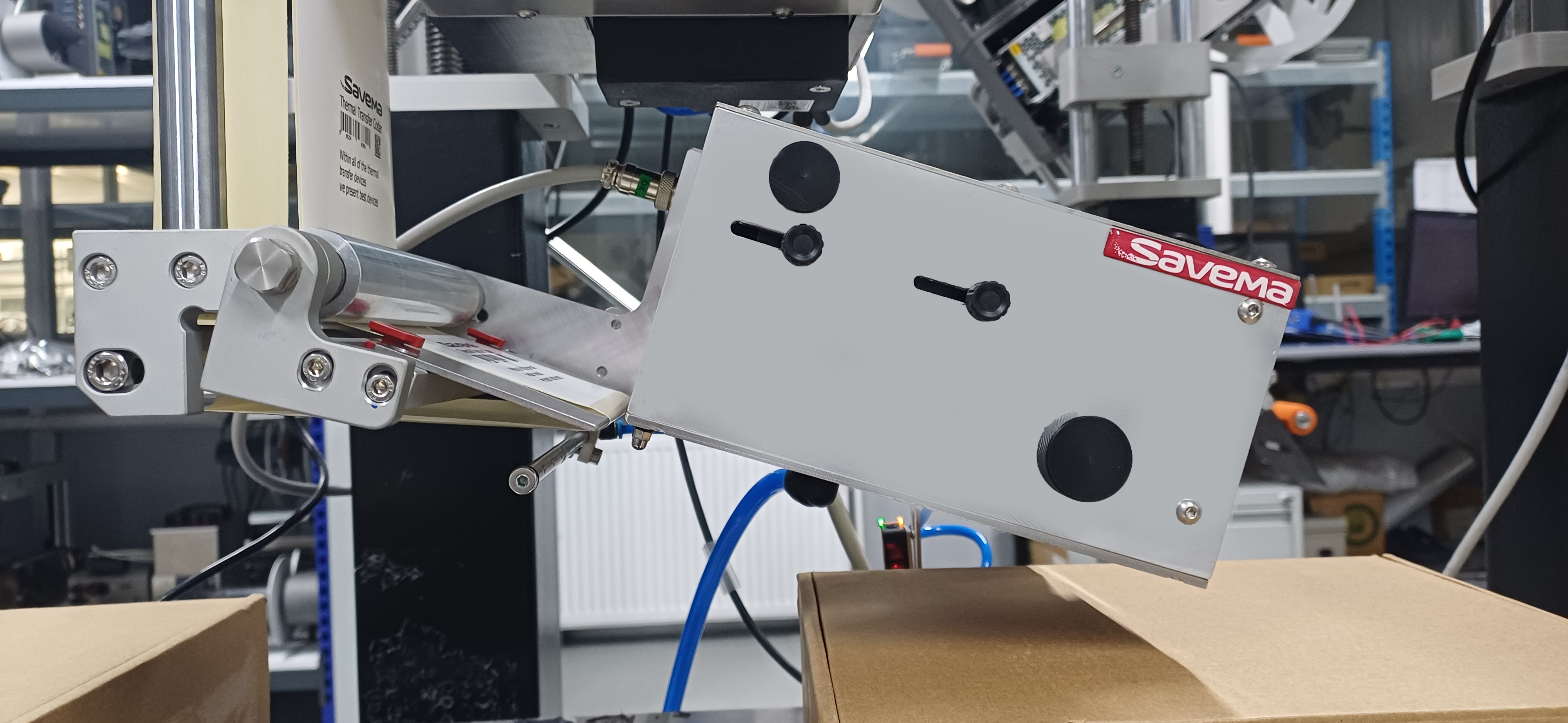

Blow-Out Module for Dispenser
SVM-BOM Blow Out Module
Assembly
The front stripping bracket of the labeling machine is removed and replaced with the blowing module.
The compressor air line and filter-regulator connection must be established; the regulator must be mounted in a nearby location.
The product weight 4.7 kg
About the Product
Min. Label Width - 40X40 mm
Max. Label Width - 100X100 mm
Label Speed - 90 labels/min (Max.)
Air Supply - 6-8 bar (the line requirement should be 10 bar)
Compatibility - D-110 S, D-110 F & D-160
Application Accuracy;
+/- 2mm from 5cm distance on 100x100 labels
+/- 4mm from 10cm distance on 100x100 labels
+/- 2mm from 5cm distance on 40x40 labels
+/- 4mm from 8cm distance on 40x40 labels
Technical Specifications
Min. Label Width - 40X40 mm
Max. Label Width - 100X100 mm
Label Speed - 90 labels/min (Max.)
Air Supply - 6-8 bar (the line requirement should be 10 bar)
Compatibility - D-110 S, D-110 F & D-160
Application Accuracy;
+/- 2mm from 5cm distance on 100x100 labels
+/- 4mm from 10cm distance on 100x100 labels
+/- 2mm from 5cm distance on 40x40 labels
+/- 4mm from 8cm distance on 40x40 labels

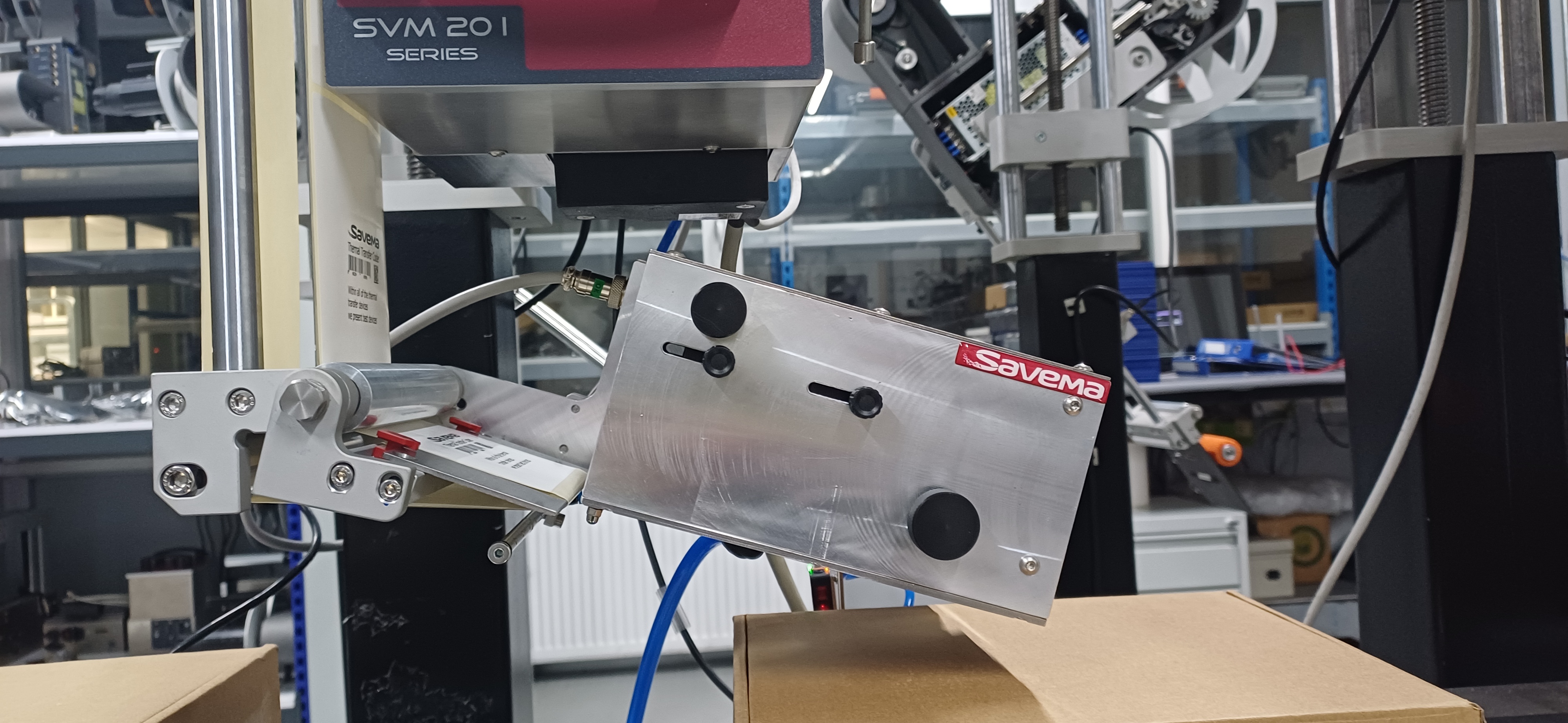

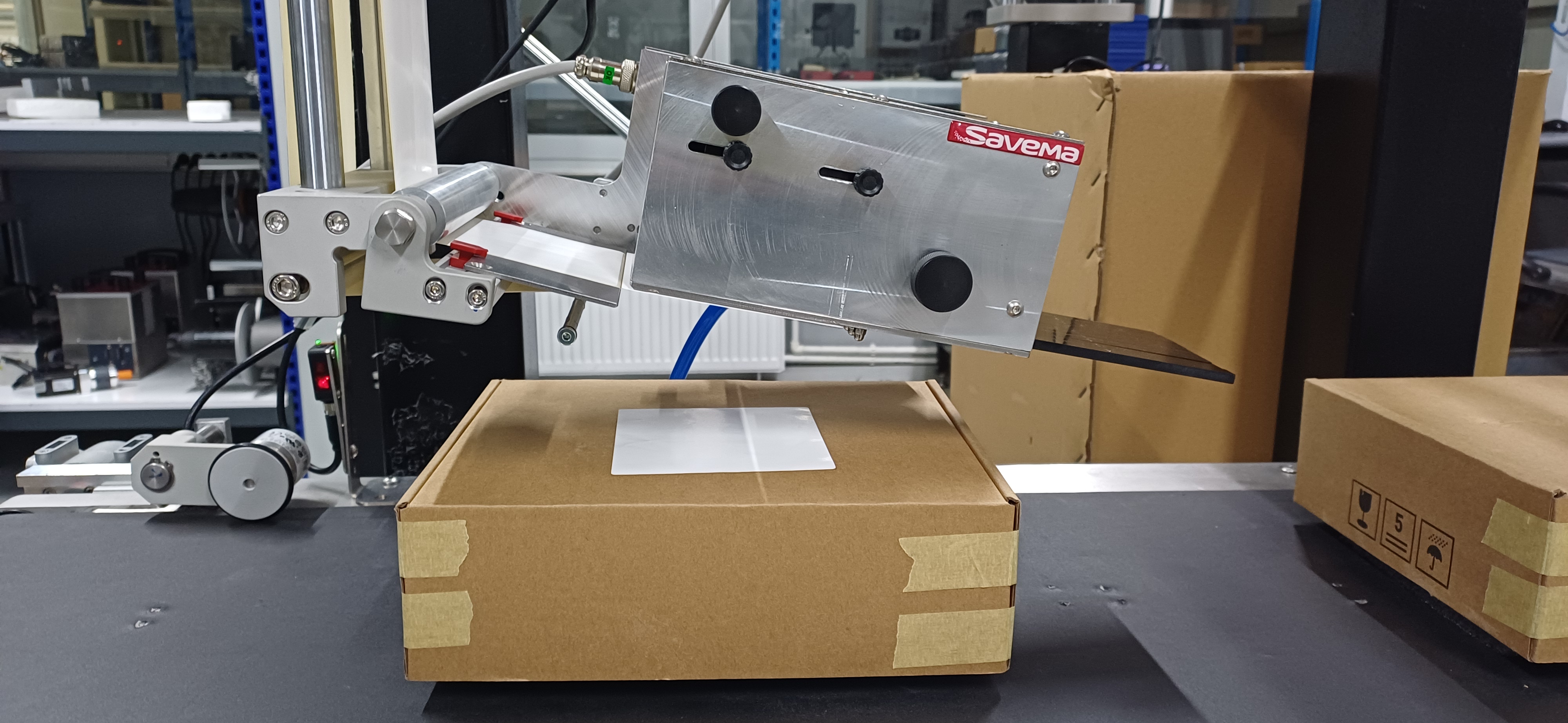

SAVEMA Blow Out System with Dispenser
DİSPENSER
