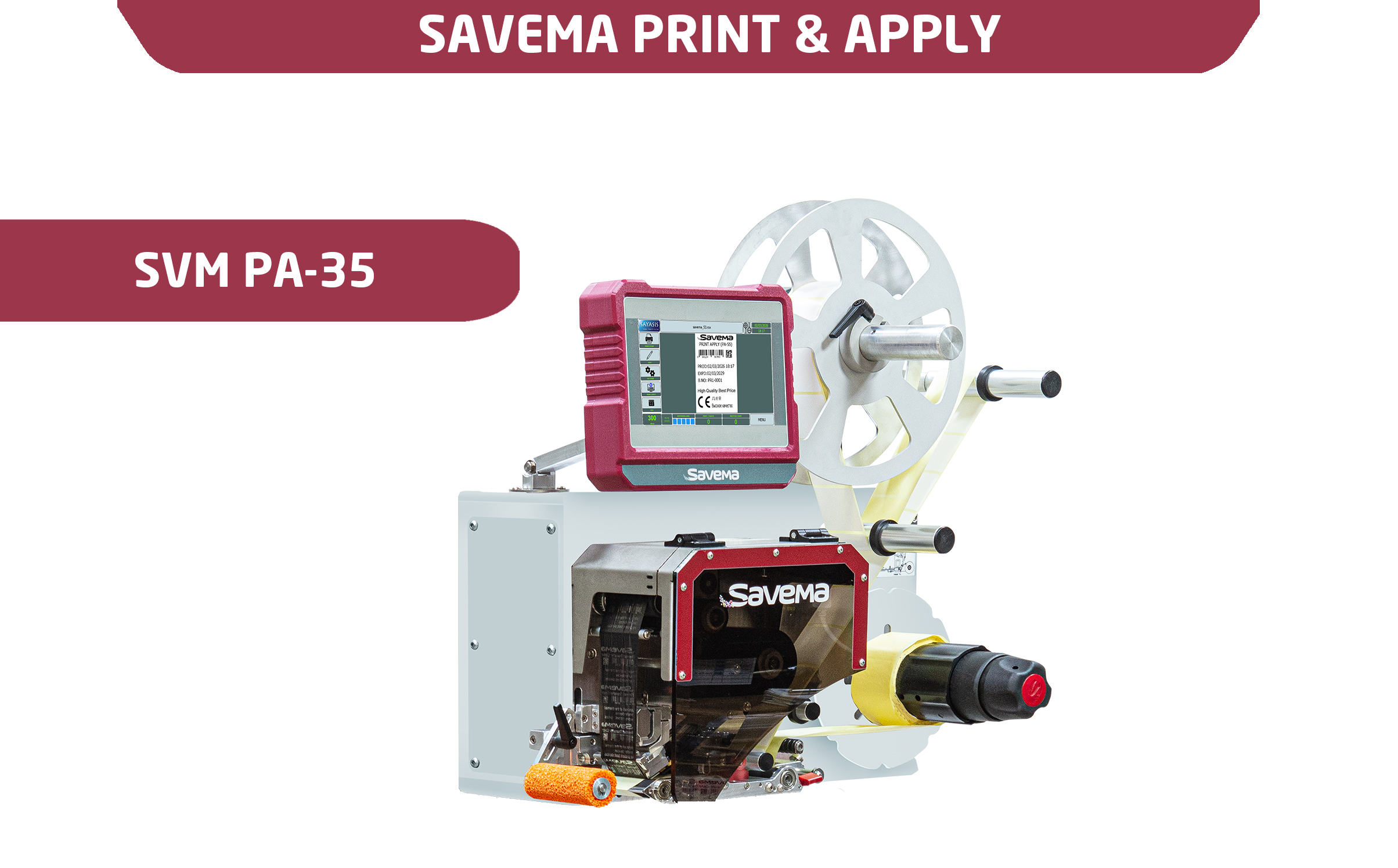

SVM PA-35
SVM PA-35
Software: SAYASIS Template Design (Date and Time, Custom Formatted Date and Time, Text, Text Block, Merge Fields, Database Support, Counter, Logo, 1D / 2D Barcodes, GS-1 Barcodes, Table Crea tion Support and User-Friendly Interface) Windows Driver Support, Nicelabel Software support, Code soft Software Support, Emulator Support, Printer Management with SPPL (Savema Protocol) Commands, Printer Control with Remote Control)
Barcodes: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPC-A,UPC-E …), 2D Barcodes (Datamatrix, QRCode, PDF417, Aztec code…), GS-1 Barcodes (GS1-128, GS1-Datamatrix, GS1-Databar Barcodes)
Resolution: 300dpi (12 dots/mm) horizontally and vertically
Operating Temperature: 1 °C – 55 °C (34°F-131°F)
Memory: Max. 1000 Template Storage Capacity, 1GB Internal Memory, Up to 32GB USB Memory Support
About the Product
Print Area - 32 mm x 250 mm
Print Speed - 25 - 420 mm/sec
Ribbon Widths & Length - 35 mm – (1,4”) & 600 meters (656yards)
Power Supply - 100-240V 50-60 Hz
Input/Outputs - Print Signal/Fault Signal, Busy Signal
Connection Types - Relay(NPN, PNP) - Photocell(NPN, PNP)
Operator Interface - 7” 1024x600 Pixels Resolution, Full-color display, Password protection onmenus, Multi-language(20) support
Weight - 30-35kg

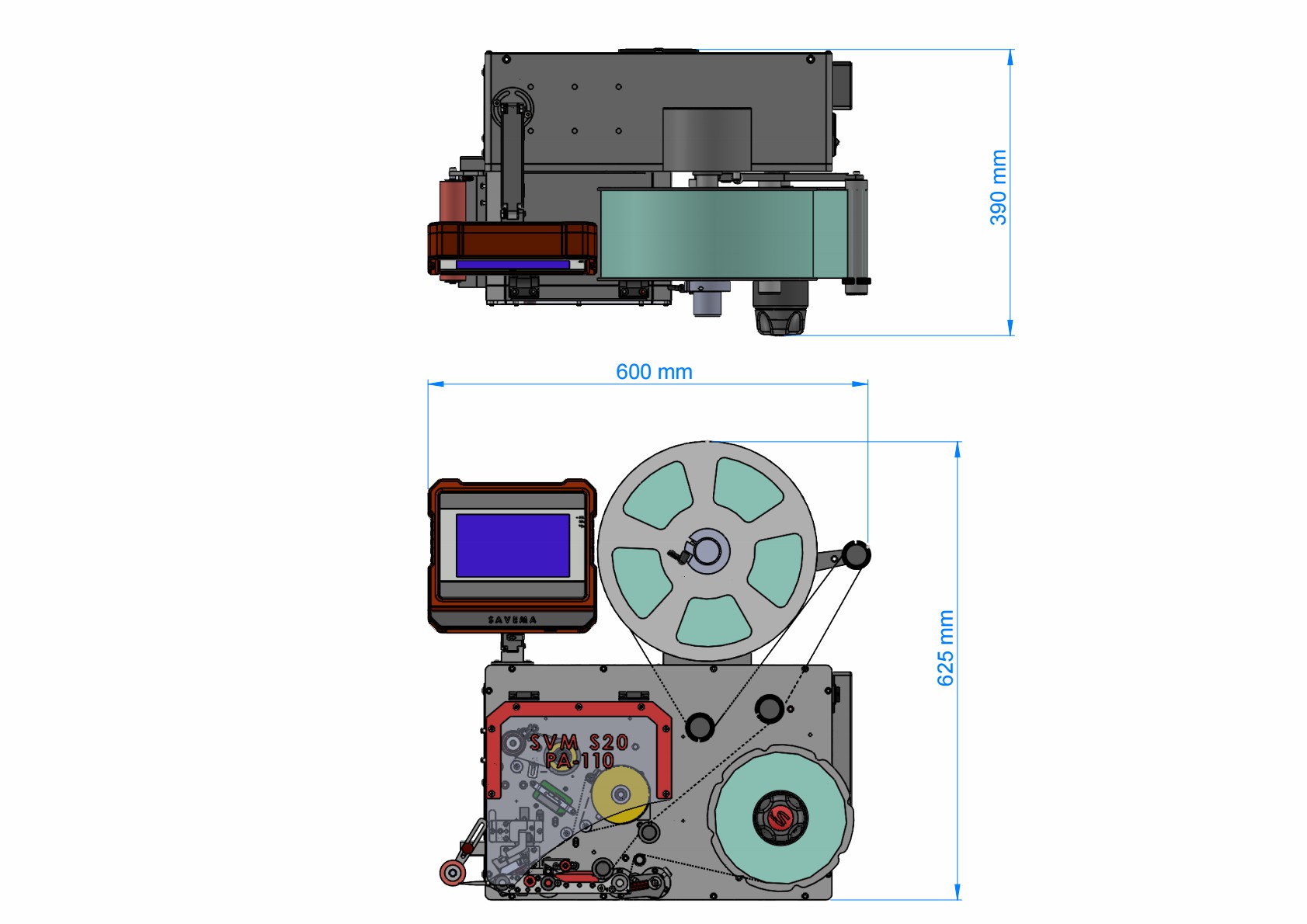

Dimensions - 625mm H x 600mm W x 390mm D
Technical Specifications
Print Area - 32 mm x 250 mm
Print Speed - 25 - 420 mm/sec
Ribbon Widths & Length - 35 mm – (1,4”) & 600 meters (656yards)
Power Supply - 100-240V 50-60 Hz
Input/Outputs - Print Signal/Fault Signal, Busy Signal
Connection Types - Relay(NPN, PNP) - Photocell(NPN, PNP)
Operator Interface - 7” 1024x600 Pixels Resolution, Full-color display, Password protection onmenus, Multi-language(20) support
Weight - 30-35kg
Dimensions - 625mm H x 600mm W x 390mm D
SAVEMA Print & Apply System with Blow Out Module
SVM Print & Apply
