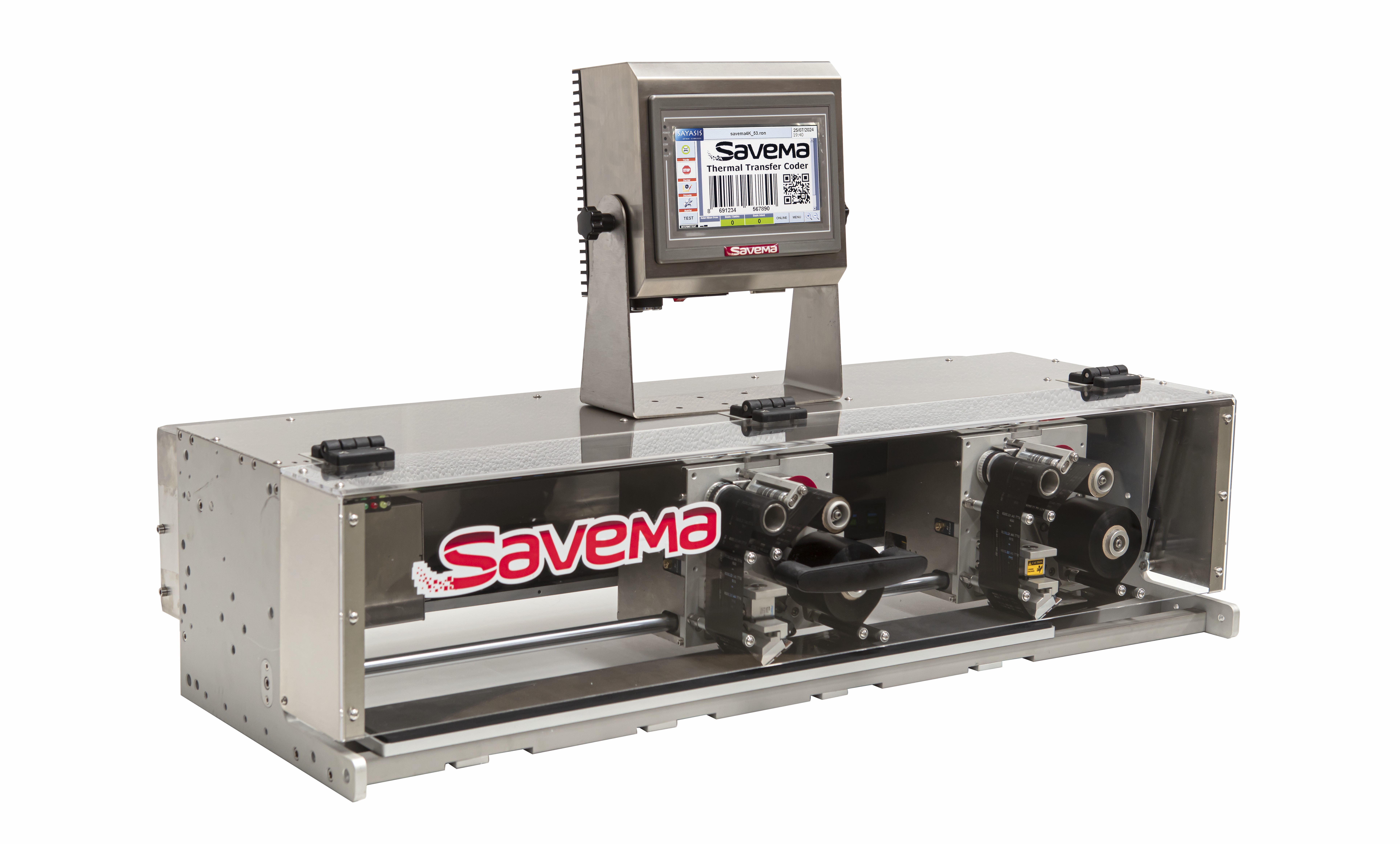

SAVEMA Double Print Head Traverse
53*600 DPH TR
Software: SAYASIS Template Design (Date and
Time, Custom Formatted Date and Time, Text, Text
Block, Merge Fields, Database Support, Counter,
Logo, 1D / 2D Barcodes, GS-1 Barcodes, Table Crea
tion Support and User-Friendly Interface)
Windows Driver Support, Nicelabel Software
support, Code soft Software Support, Emulator
Support, Printer Management with SPPL (Savema
Protocol) Commands, Printer Control with Remote
Control)
Barcodes: 1D Barcodes (EAN-13, EAN-8, CODE
128, CODE 39, CODABAR, ITF 2of5, ITF 14,
UPC-A,UPC-E …), 2D Barcodes (Datamatrix, QR
Code, PDF417, Aztec code…), GS-1 Barcodes
(GS1-128, GS1-Datamatrix, GS1-Databar Barcodes)
Resolution: 300dpi (12 dots/mm) horizontally and
vertically
Operating Temperature: 1 °C – 55 °C (34°F-131°F)
Memory: Max. 5000 Template Storage Capacity,
1GB Internal Memory, Up to 16GB SD Memory Card
Support, Up to 32GB USB Memory Support
About the Product
53mm x 125mm
(in one print standard)
53mm x 500mm
(in one print optional)
Print Speed 50 - 400 mm/sec
Ribbon Widths & Length 22mm, 35 mm, 55mm (0,9” – 1,4” – 2,2” – 4,28”) & 600 meters (656yards) loaded ribbon
Power Supply 100-240V 50-60 Hz
Air Supply (Bar) Min. 1 bar – Max. 4 bar
Input/Outputs Print Signal/Fault Signal, Busy Signal
Output Messages Update Error, Contact Error, Ribbon Break / Not Found Error, Number of Printed Templates, Number of Prints per Minute
Technical Specifications
53mm x 125mm
(in one print standard)
53mm x 500mm
(in one print optional)
Print Speed 50 - 400 mm/sec
Ribbon Widths & Length 22mm, 35 mm, 55mm (0,9” – 1,4” – 2,2” – 4,28”) & 600 meters (656yards) loaded ribbon
Power Supply 100-240V 50-60 Hz
Air Supply (Bar) Min. 1 bar – Max. 4 bar
Input/Outputs Print Signal/Fault Signal, Busy Signal
Output Messages Update Error, Contact Error, Ribbon Break / Not Found Error, Number of Printed Templates, Number of Prints per Minute
