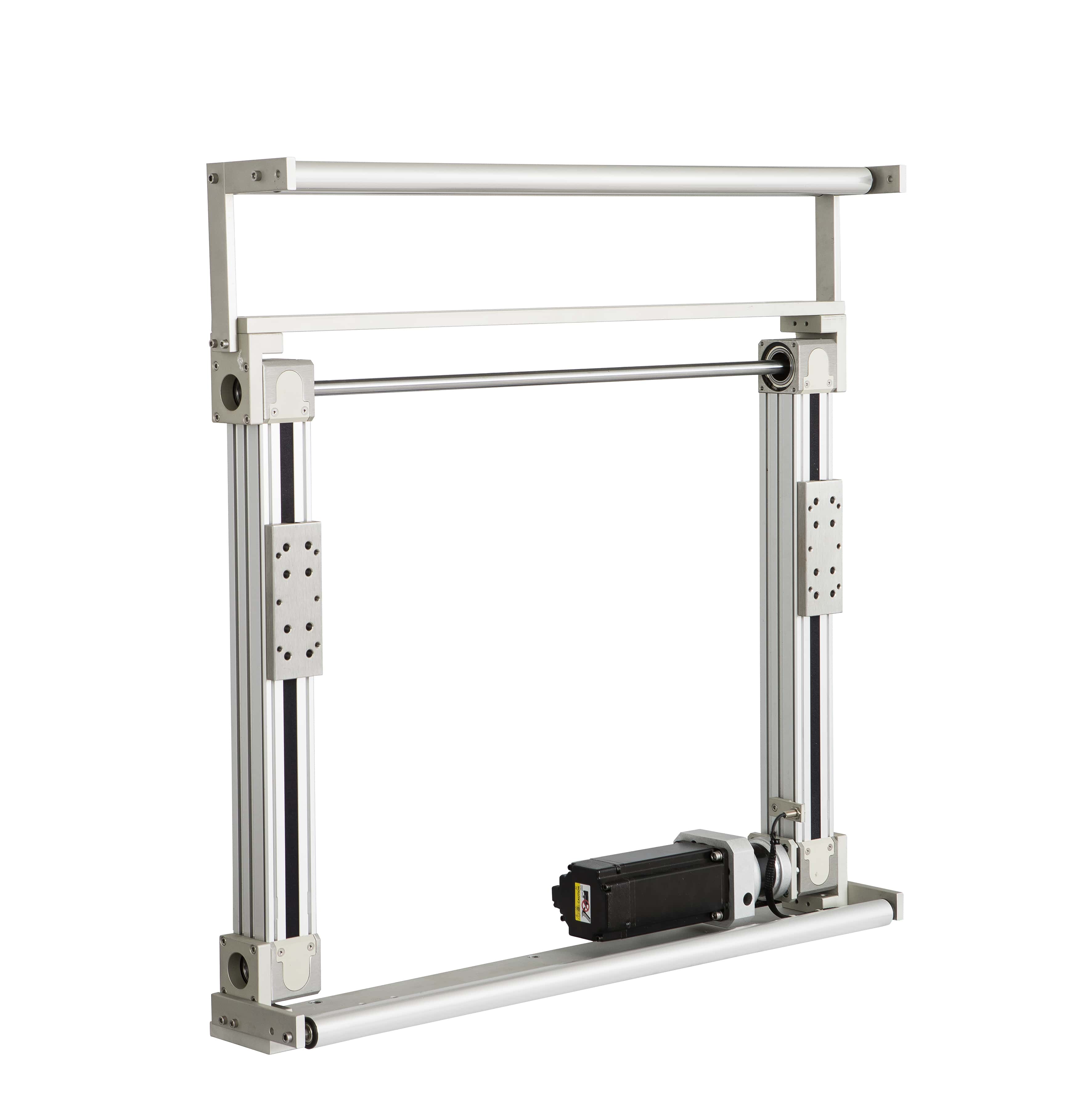

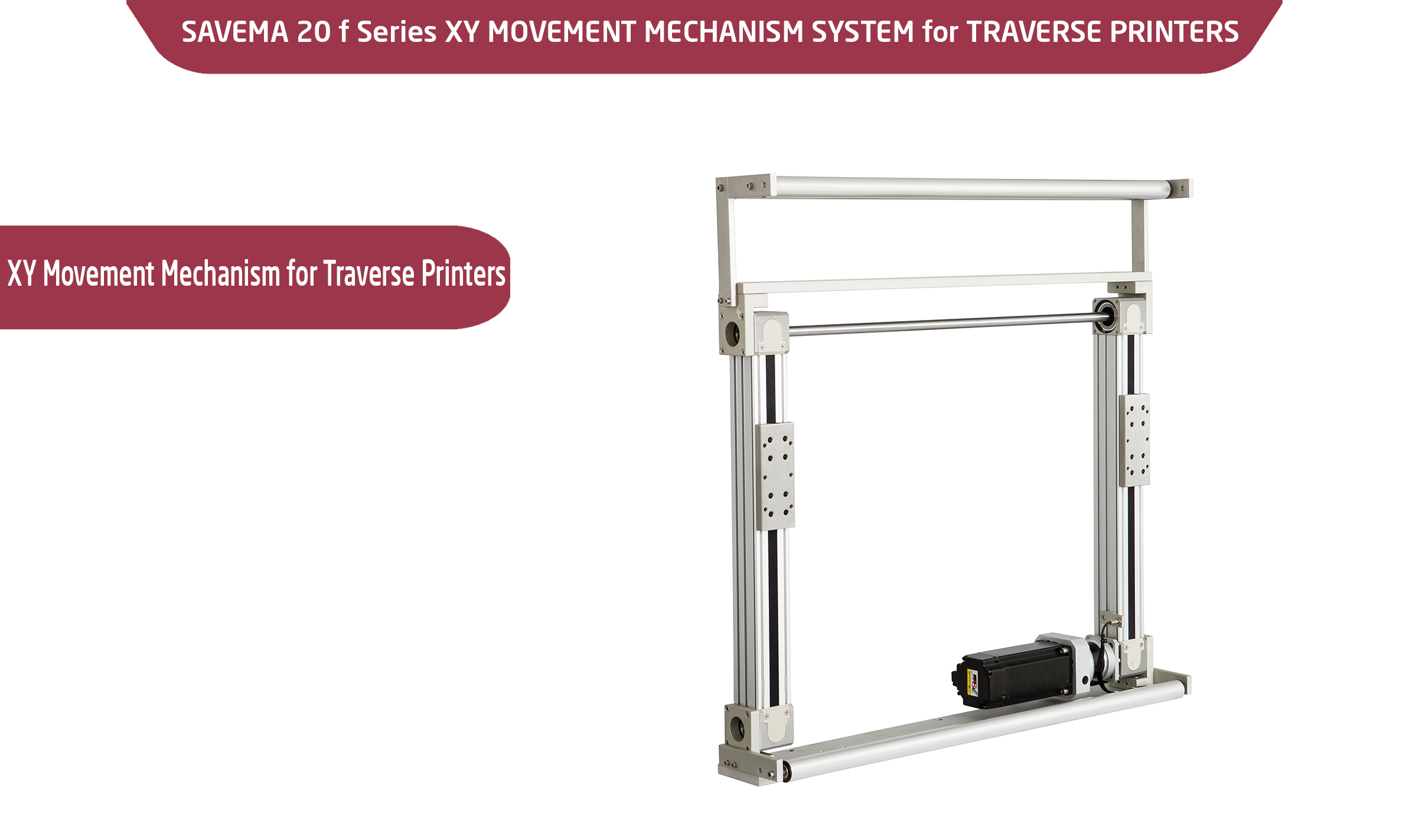

XY Movement Mechanism for Traverse Printer

SAVEMA XY Movement Mechanism system is designed to work with traverse printers. This system provides that the traverse printer can move to axis "X" and to axis "Y". It is more suitable for multi-line packaging machines that can pack more than 1 horizontal and vertical at one time like thermoform machines.

  • Horizontal Movement: Min. 350 mm Max. 850 mm
  • Vertical Movement: It depends on Traverse printer
  • Max. Width of Product: 900 mm









*Horizontal Movement Min.: 350 mm Max. 850 mm
*Vertical Movement: It depends on Traverse printer
*Max. Width of Product: 900 mm
*Control Type: Servo Motor Control
*Power: 100-120V 50-60 Hz
              200-240V 50-60 Hz
*Weight: 20 Kg (CHANGEABLE)
*Dimensions: 295mm H x 450mm W x 400mm D

XY Mechanism Catalog

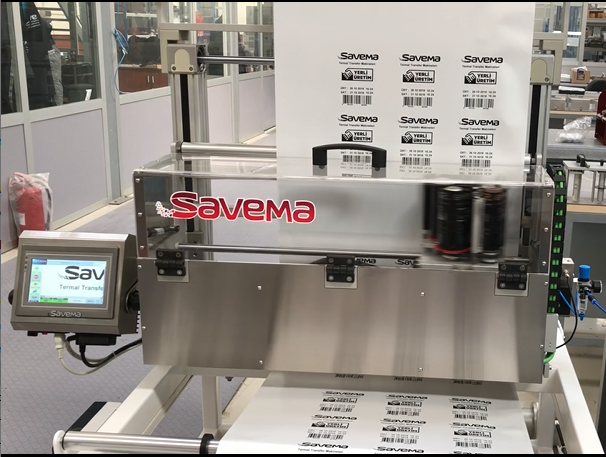

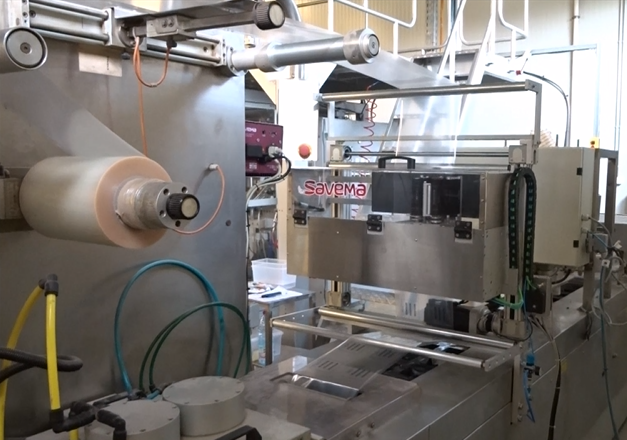

SAVEMA Traverse Printer with XY Movement Mechanism System
SAVEMA Traverse Printer with XY Movement Mechanism System
