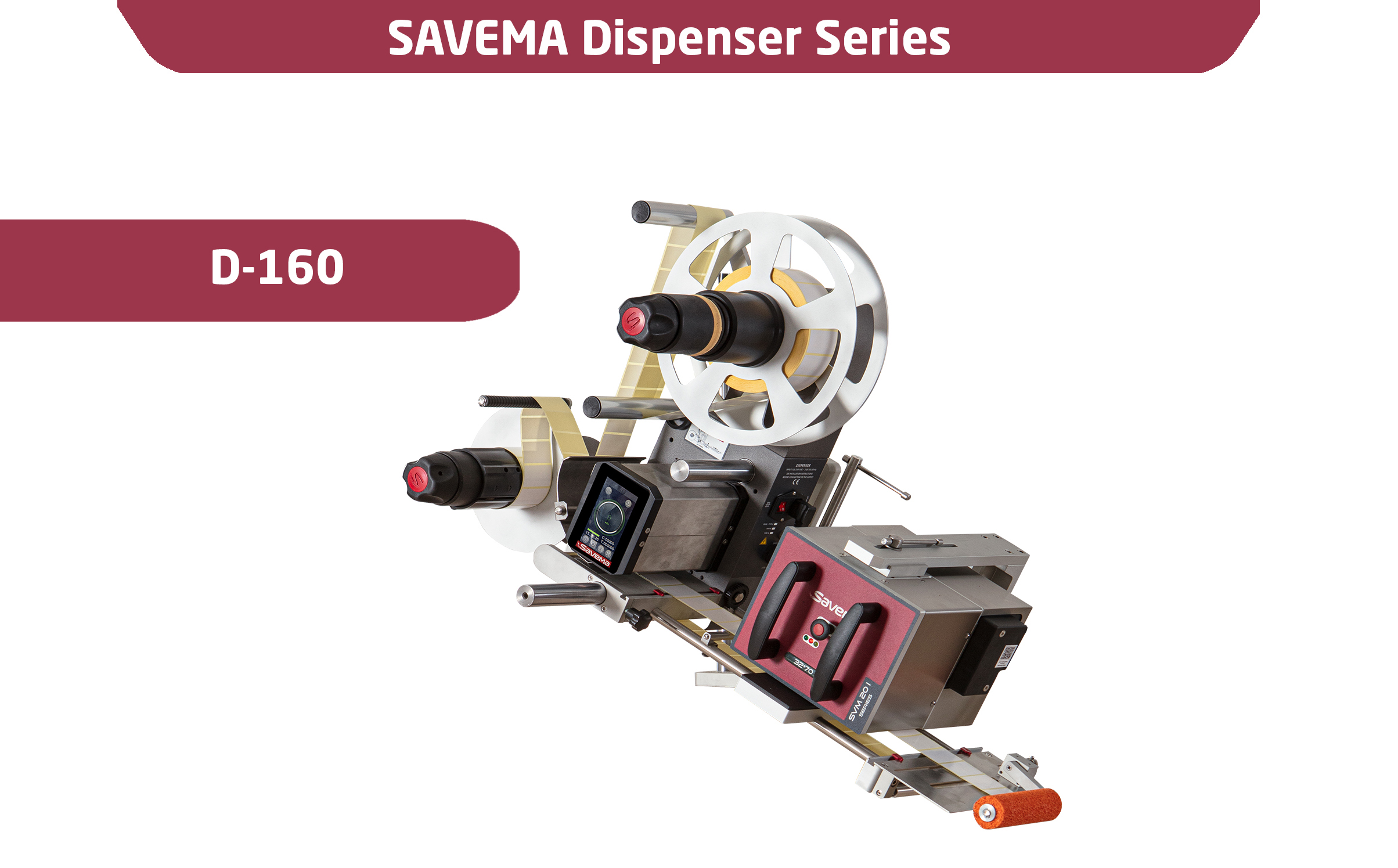

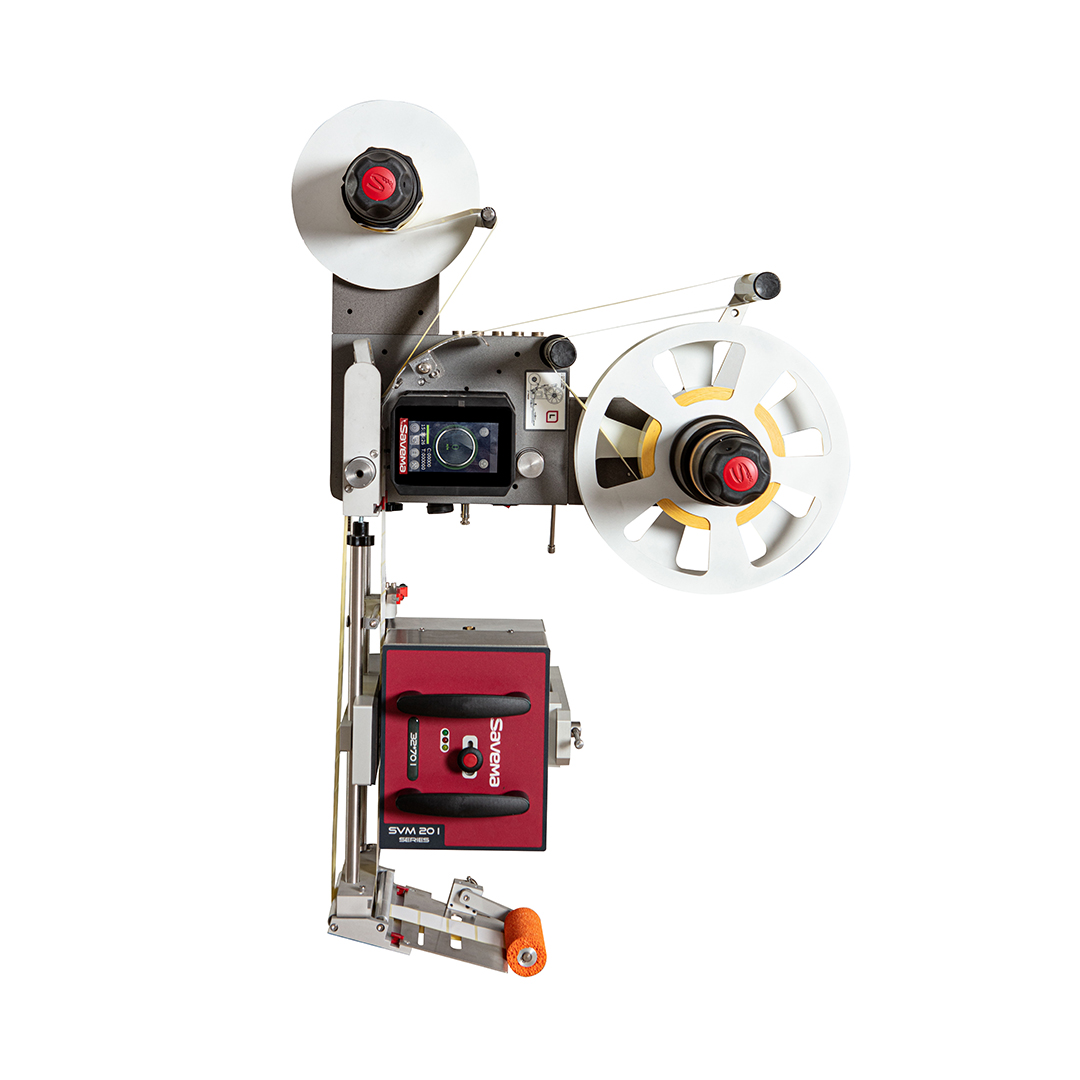

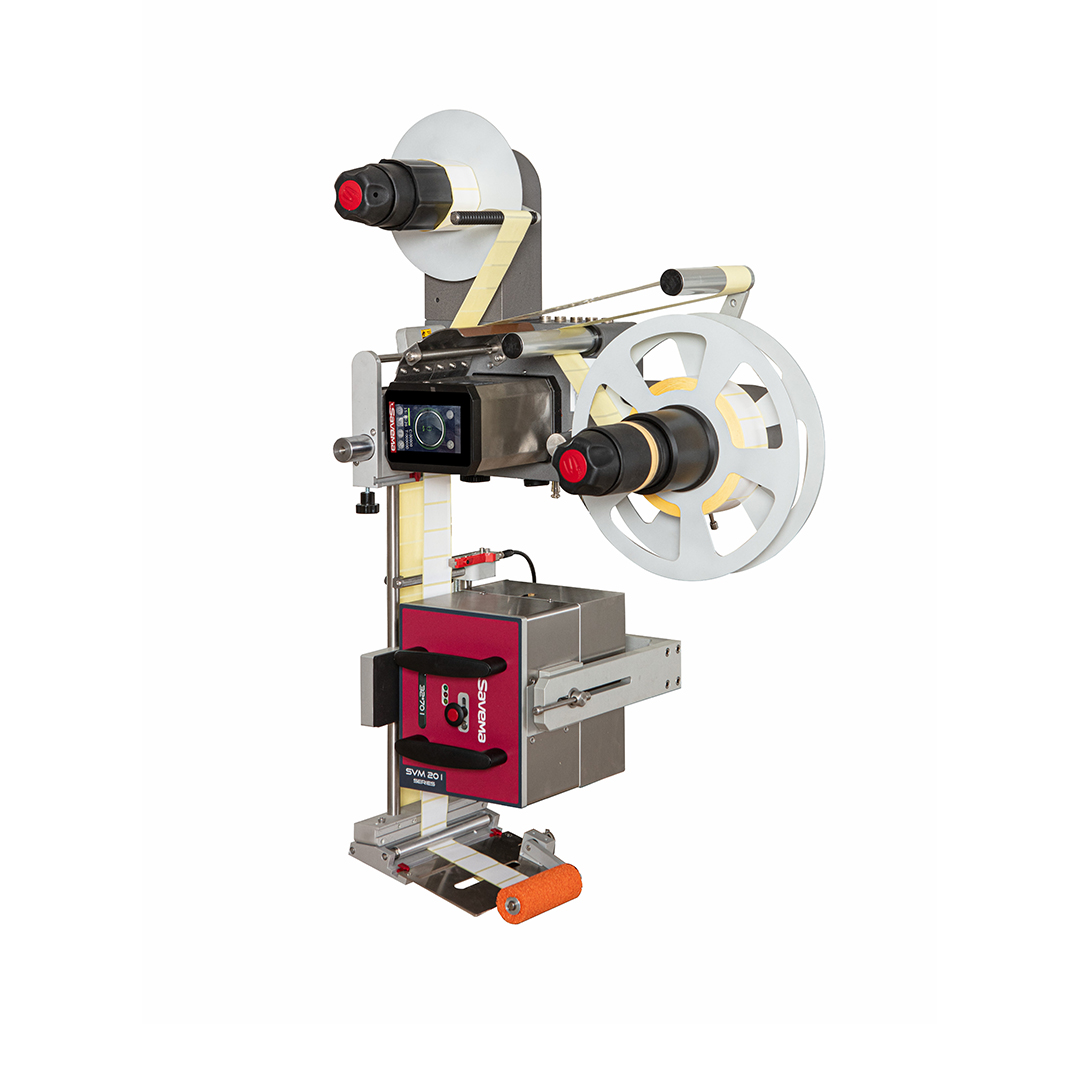

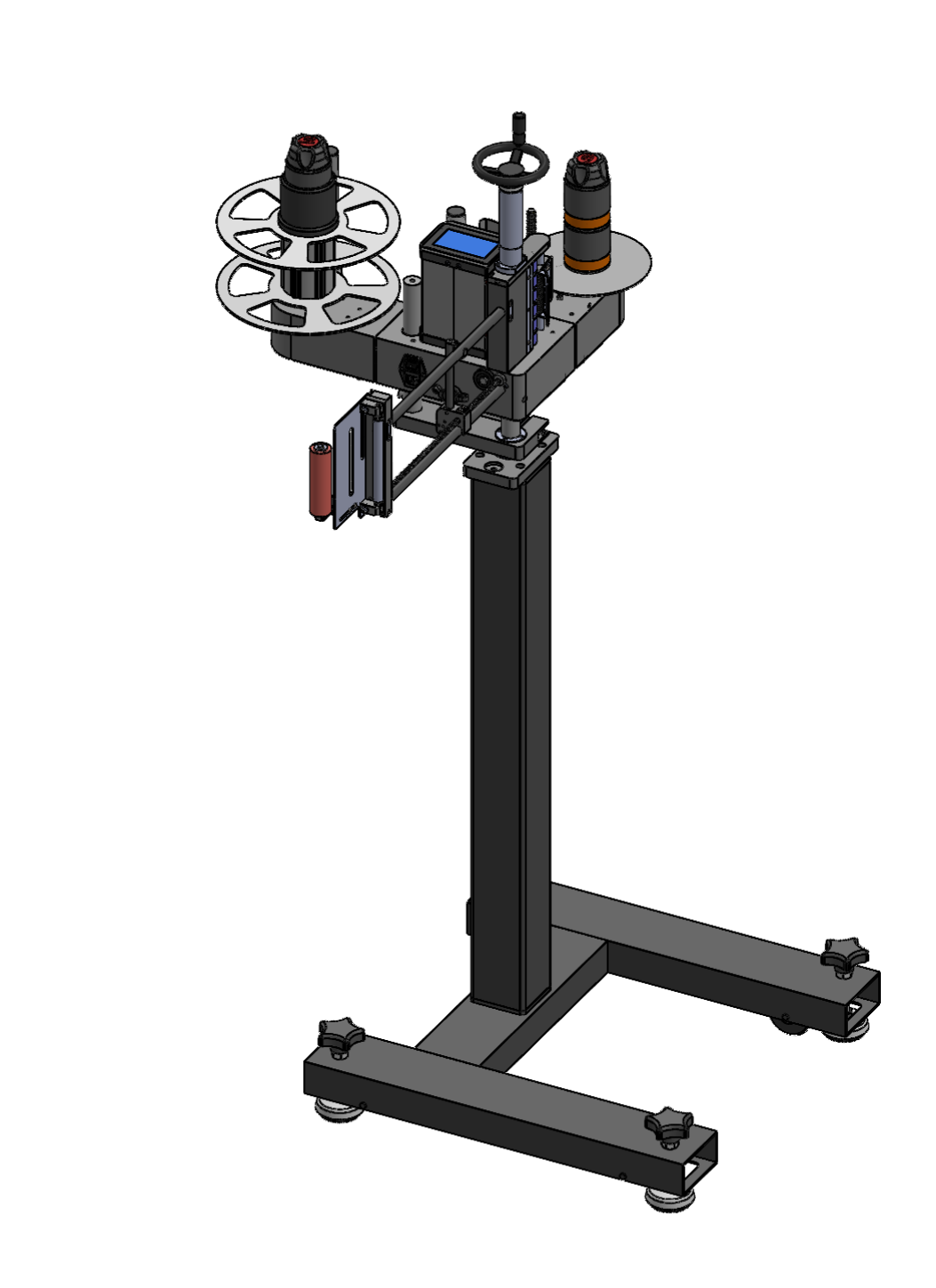

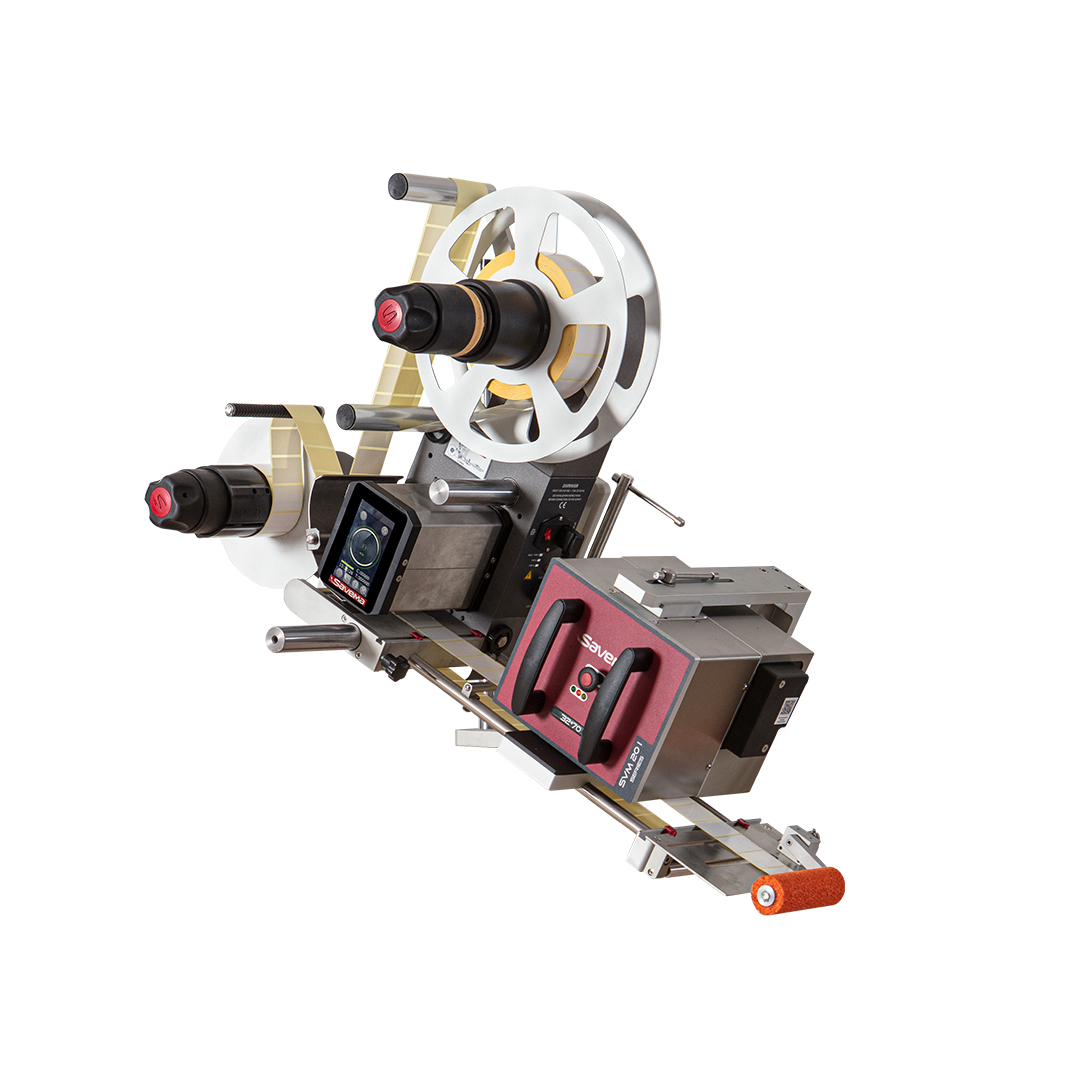

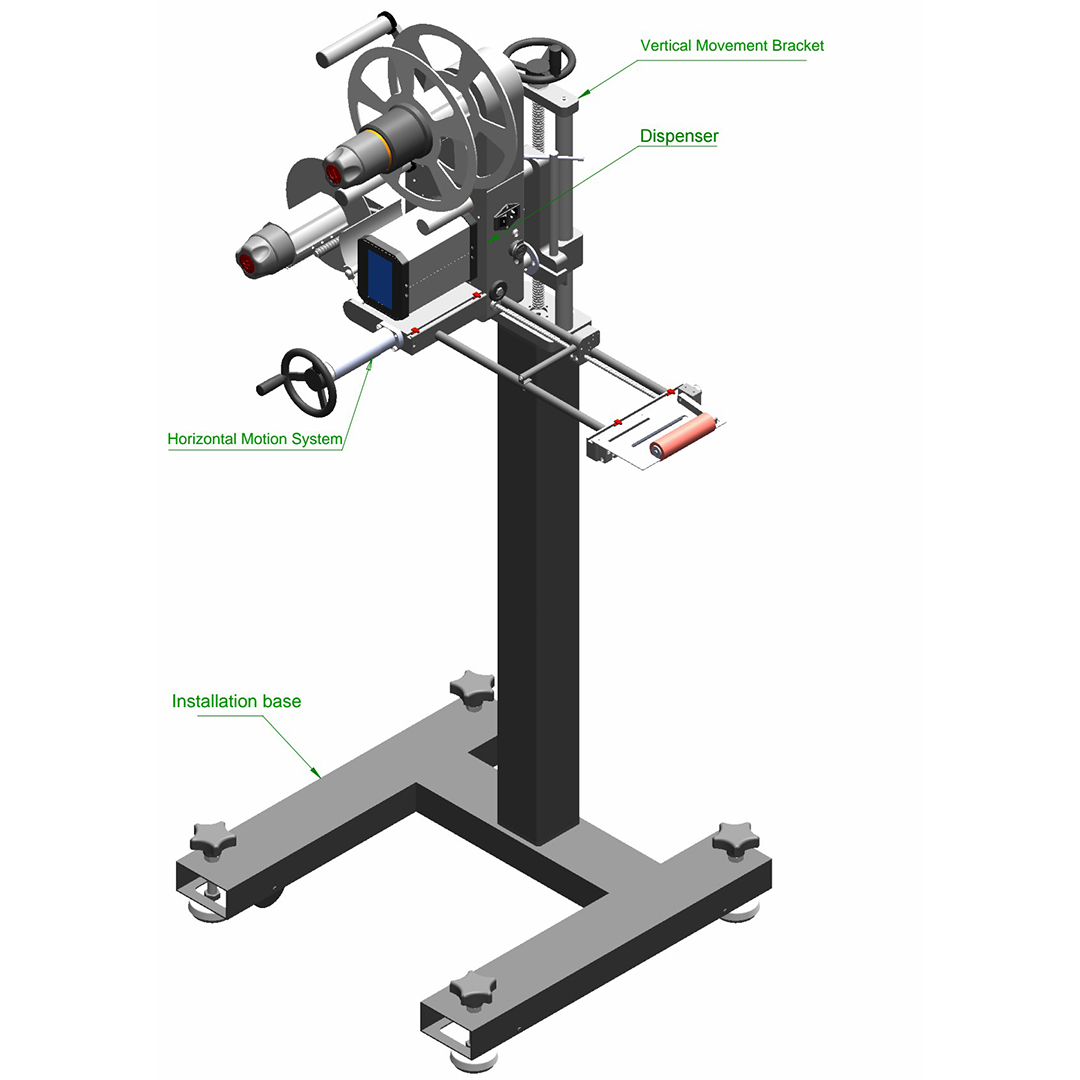

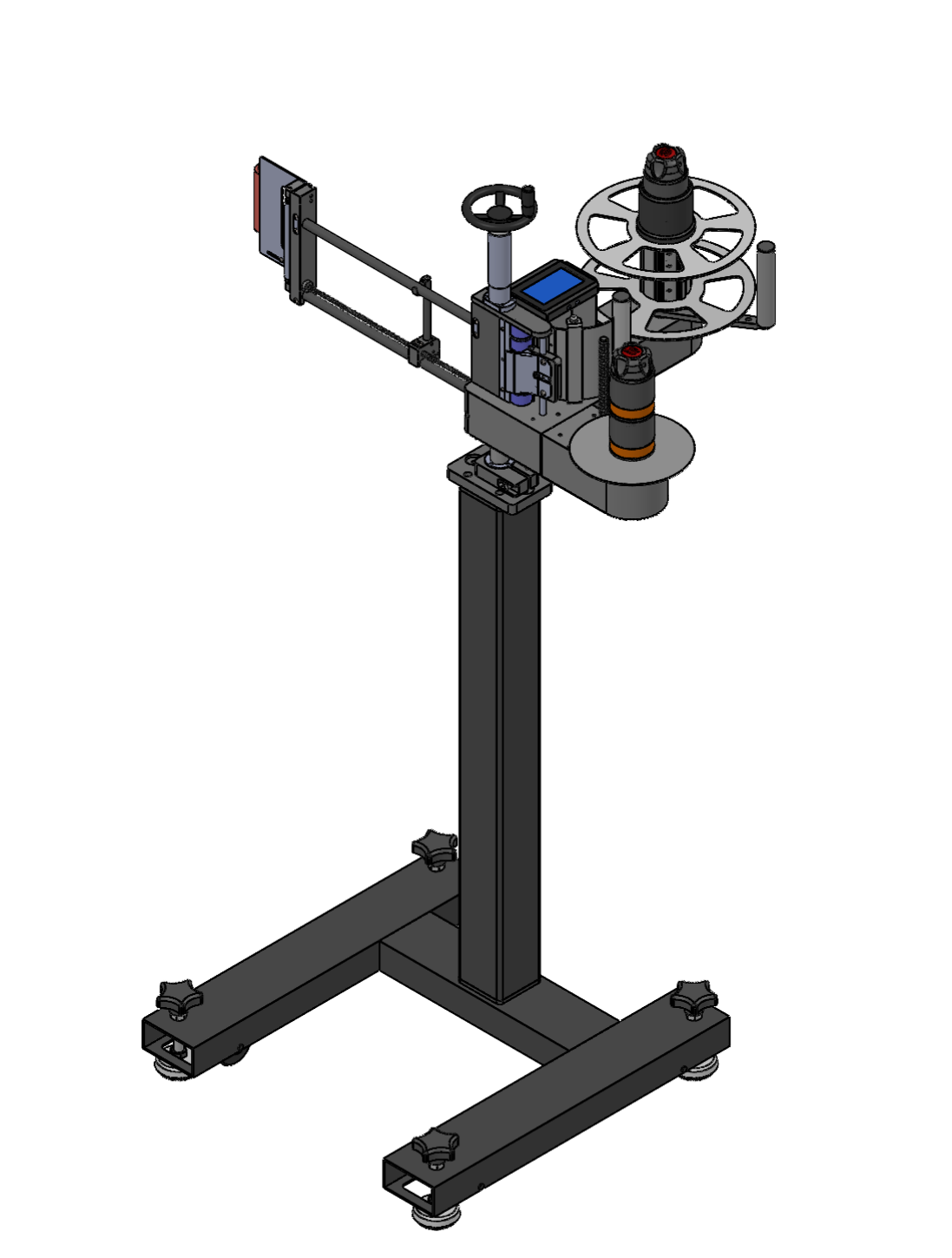

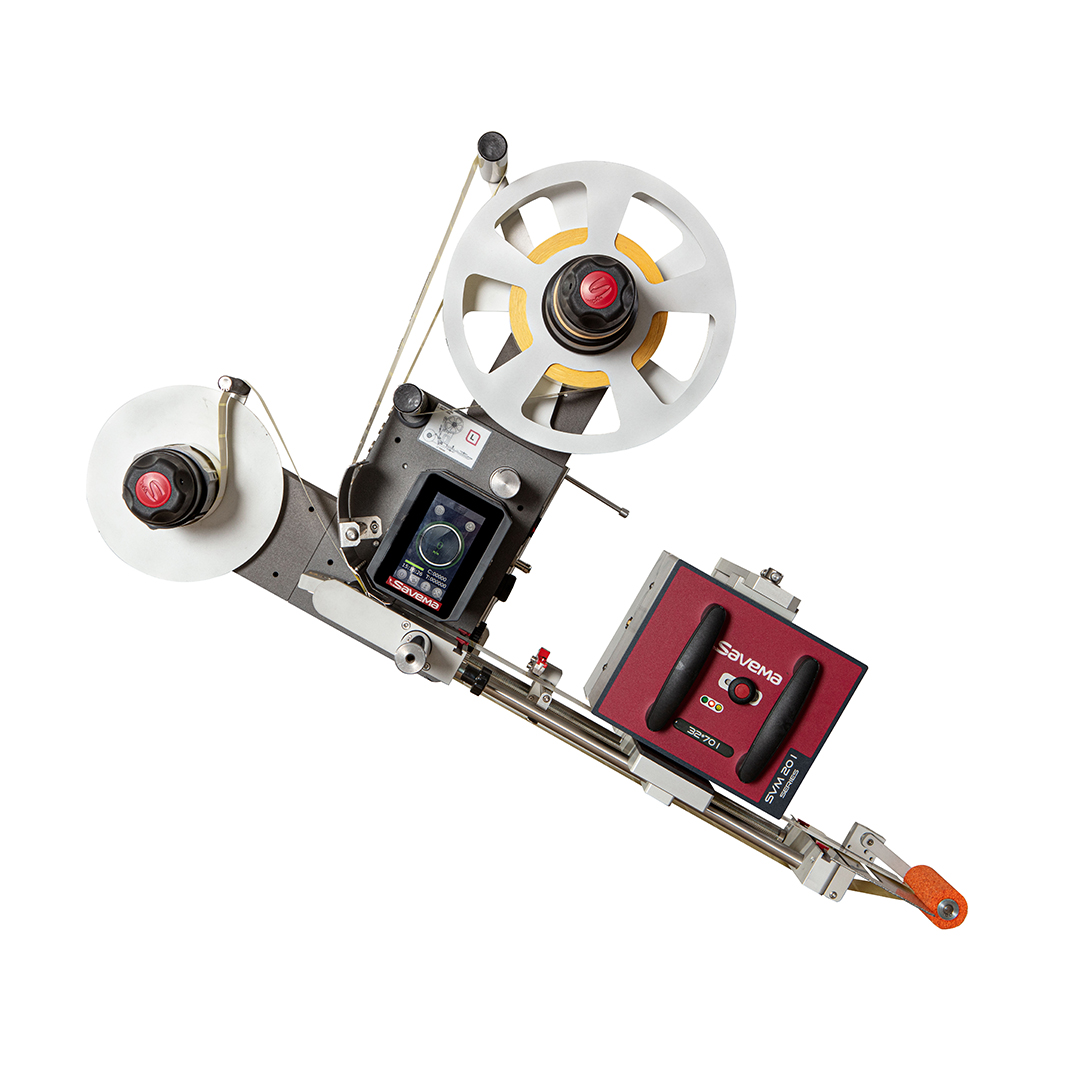

Dispenser D-160

 Printers Can Be Installed SVM 32 Intermittent Printers and SVM 53 Intermittent Printers.



  • Maximum Label Width : 160mm
  • Maximum Label roll Diameter : 30cm
  • MaXimum Label Speed : 45meter/min
  • Pwer Supply : 100-240V 5.8 A 50-60 Hz. 500W
  • Weight : 35Kg
  • Type : Otomatik
  • Blower Mechanism (optional)
  • Transparent Label Sensor (optional)





  • Maximum Label Width : 160mm
  • Maximum Label roll Diameter : 30cm
  • MaXimum Label Speed : 45meter/min
  • Pwer Supply : 100-240V 5.8 A 50-60 Hz. 500W
  • Weight : 35Kg
  • Type : Otomatik
  • Blower Mechanism (optional)
  • Transparent Label Sensor (optional)

 Label Speed : Max. 45 meters/min

Power Supply : 100-220V AC, 500W, 50-60 Hz

I/O Interface :  Label Feeding Signal Input / Fault Signal Output, Busy Signal Output

Interface(optional) :  Modbus RTU, Modbus TCP, Ethernet TCP/IP, Can-Open, Start / Stop Signal

Connection Types :  Relay (NPN-PNP) – Photocell (NPN-PNP)

Operation : 4.3” / 272x480 pixel resolution touchscreen, user menu, setting menu, user start/stop, user
administration, manual label feed

Language : Multi-Language System(TR,EN,IT,DE,RU,AR,FR,ES,CS,NL,CN,KO,PT,EL,FA)

Advanced Properties : Working with encoder or without encoder, printer can be connected (optional) blower mechanism can be connected (optional), transparent label sensor (optional), missing label error, label broken error, printer fault error

Dispenser D-160 Catalog
