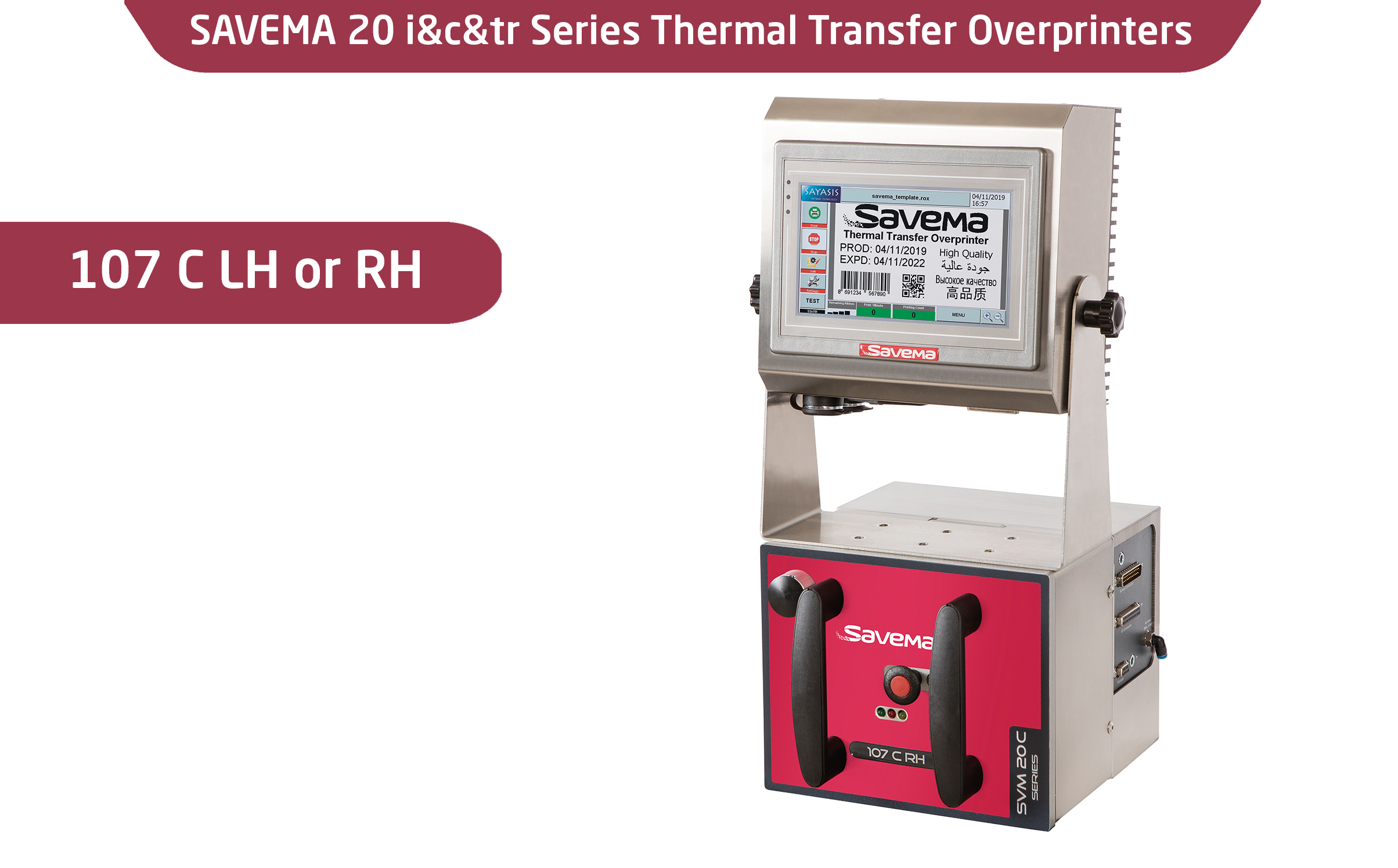

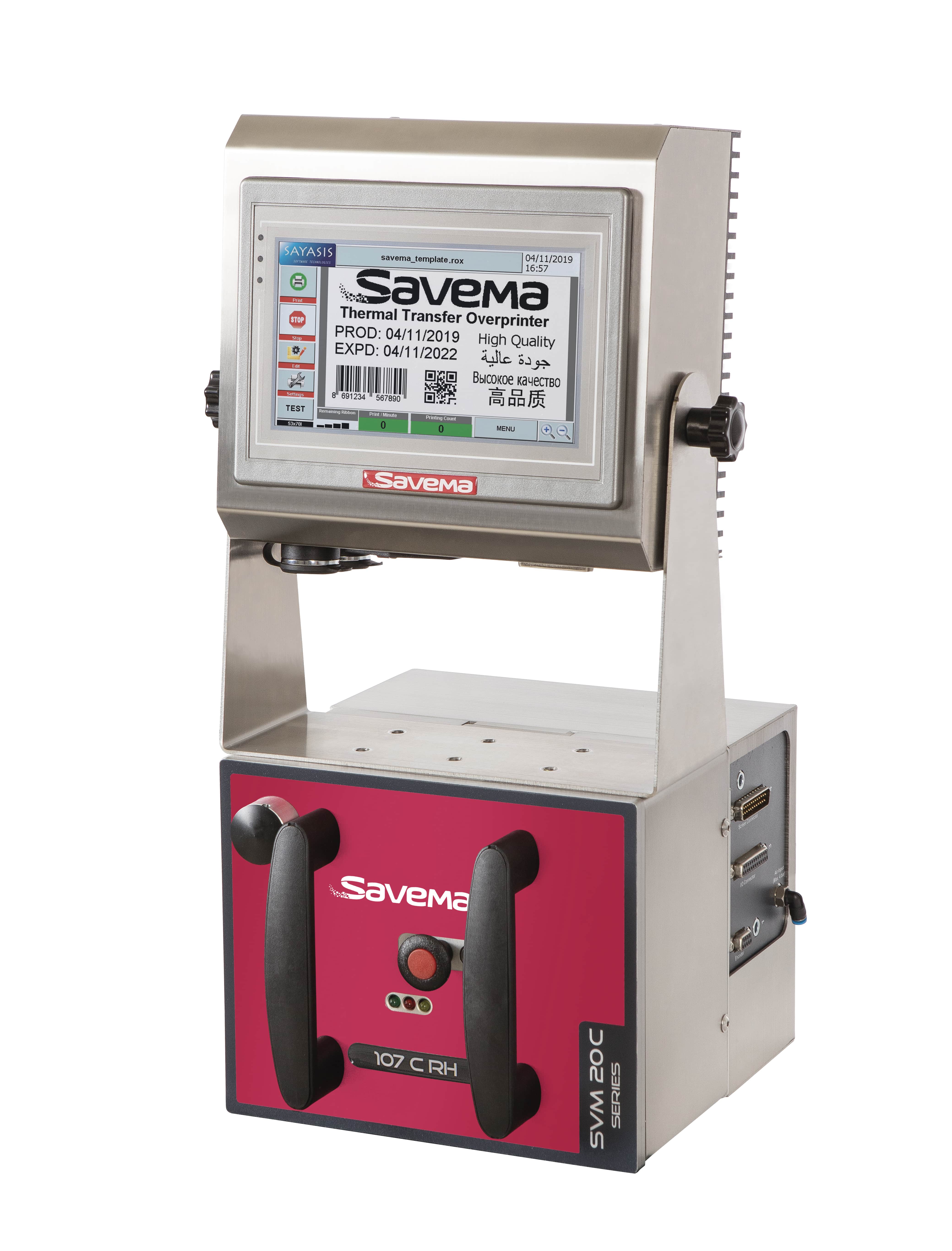

107 C

The high performance, cost-effective SAVEMA Thermal Transfer Overprinters (TTOs) are versatile enough for printing fixed and variable text, data, and graphics. It is ideal for reproducing bar codes, real-time, sell-by dates, batch numbers, prices, source codes and much more. Two-component models of brackets (Intermittent & Continuous)  can be easily integrated into machines such as vertical and horizontal form-fill-seal systems, primary labelers, thermoformers, and overwrapping equipment. The units are suitable for all continuous applications within the food, pharmaceutical cosmetics, and automobile spare parts industries and have the capability to code all kinds of 1D/2D barcodes and Datamatrix codes.





  • Robust mechanical design needs no maintanence.
  • 107mm – 125mm(250mm optional) for Continuous mode print area.
  • 600 m. Ribbon Capacity.
  • 300 dpi (12 dots/mm) Print Quality.
  • 10 - 600mm per/second print speed.
  • Template Design PC Program "Sayasis S20" all features are free of charge.
  • Large memory for all label formats to be stored locally.
  • The USB can be used to transfer messages between printers and through computer too.



* 107mm x 125mm (107mm x 250mm Optional) Continuous mode print area.

* 600 meter ribbon capacity.

* Resolution 300 dpi (12 dots / mm)

* Print Speed 10 - 600 mm/sec.

* 7" touch panel color control screen.

* 90 °, 180 °, 270 ° rotate features of the templates.

* Memory: 5000 Templates can be stored in the control screen memory.

* Power Supply: 100/240V 50/60 Hz.

* Programming: Real Date/Time, Text, 1D/2D Barcodes, GS-1 Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency, Database Support, Table Creation Support.

* Barcode Types: 1D Barcodes ( EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPCA, UPC-E…), 2D Barcodes (Datamatrix, QR Code, PDF417, Aztec code…), GS-1 Barcodes ( GS1-128, GS1-Datamatrix, GS1-Databar Barcodes)

* Communication: RS-232, Ethernet, USB

* PC Programme: Sayasis S20 (All Features Free)

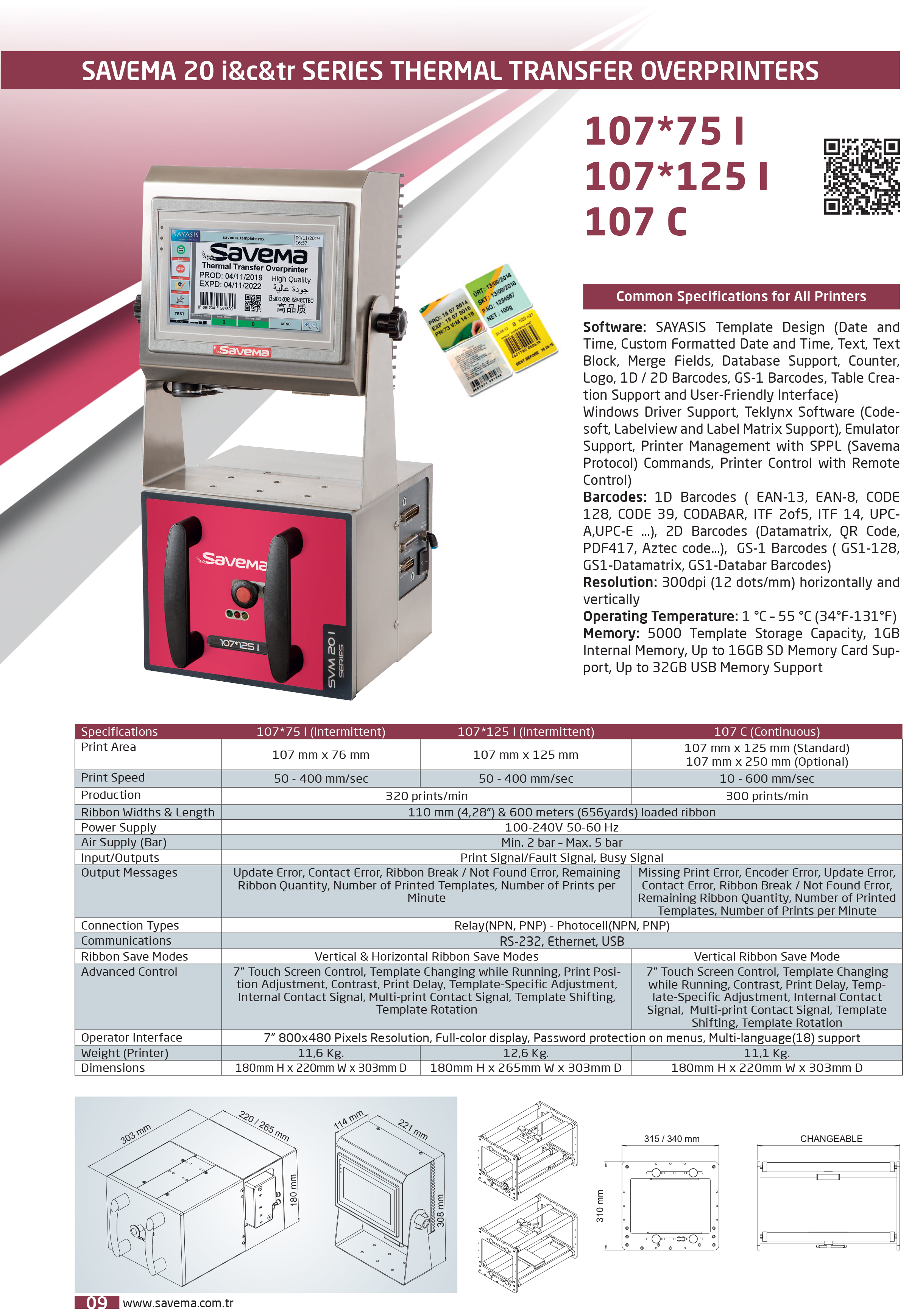

107 Continuous TTO Catalog

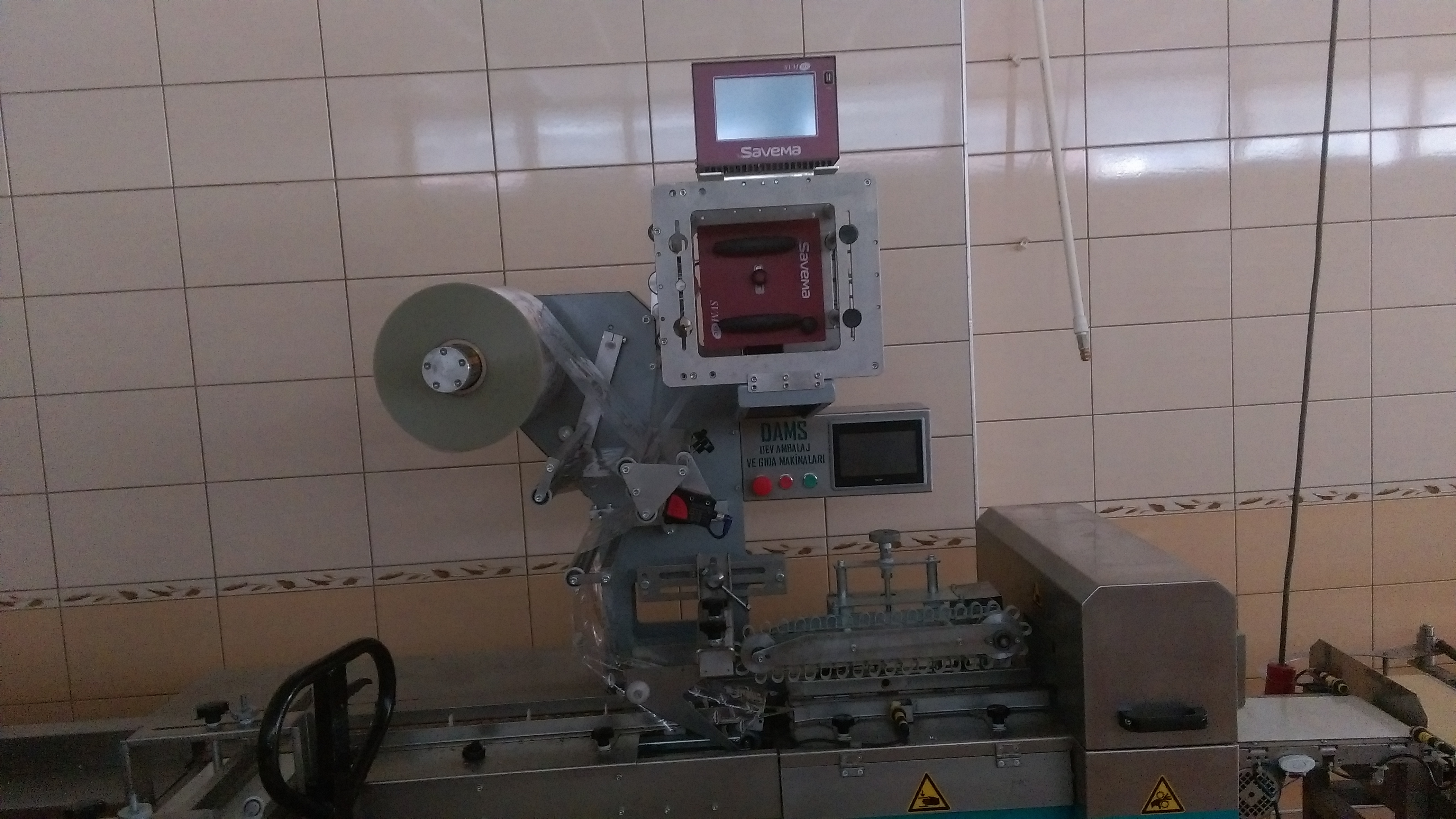

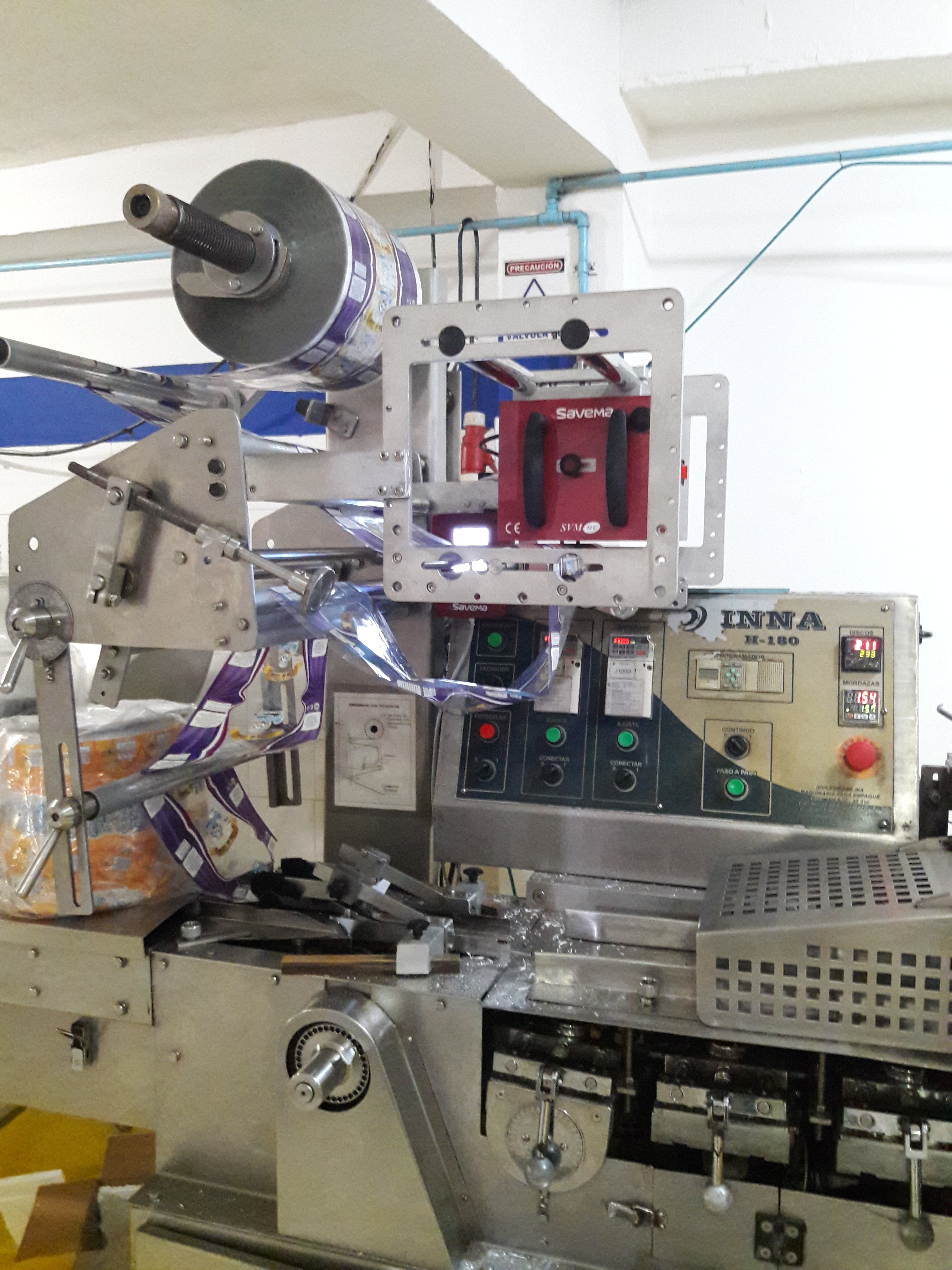

SVM 107 Continuous installed by ASE Srl to Plastic Manufacturer in Italy Market
