SVM-BOM Blow Out Module for Dispenser

  Assembly

•   The front stripping bracket of the labeling machine is removed and
    replaced with the blowing module.
•   The compressor air line and filter-regulator connection must be
    established; the regulator must be mounted in a nearby location.
•   The product weight 4.7 kg

•   Min. Label Width - 40X40 mm
•   Max. Label Width - 100X100 mm
•   Label Speed - 90 labels/min (Max.)
•   Air Supply - 6-8 bar (the line requirement should be 10 bar)
•   Compatibility - D-110 S, D-110 F & D-160

 Application Accuracy
•  +/- 2mm from 5cm distance on 100x100 labels
•  +/- 4mm from 10cm distance on 100x100 labels
•  +/- 2mm from 5cm distance on 40x40 labels
•  +/- 4mm from 8cm distance on 40x40 labels

•   Min. Label Width - 40X40 mm
•   Max. Label Width - 100X100 mm
•   Label Speed - 90 labels/min (Max.)
•   Air Supply - 6-8 bar (the line requirement should be 10 bar)
•   Compatibility - D-110 S, D-110 F & D-160

 Application Accuracy
•  +/- 2mm from 5cm distance on 100x100 labels
•  +/- 4mm from 10cm distance on 100x100 labels
•  +/- 2mm from 5cm distance on 40x40 labels
•  +/- 4mm from 8cm distance on 40x40 labels

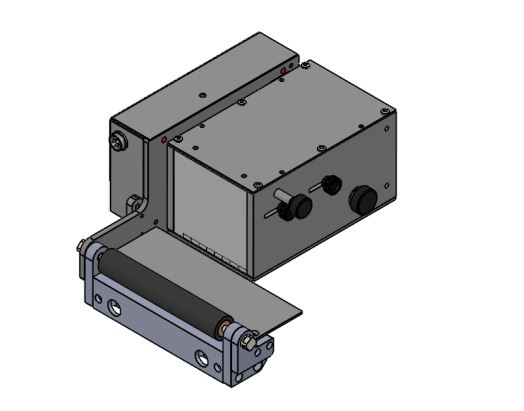

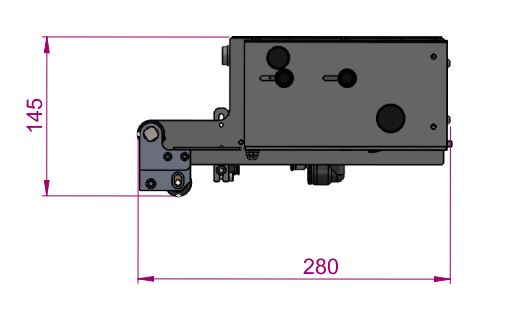

SVM-BOM

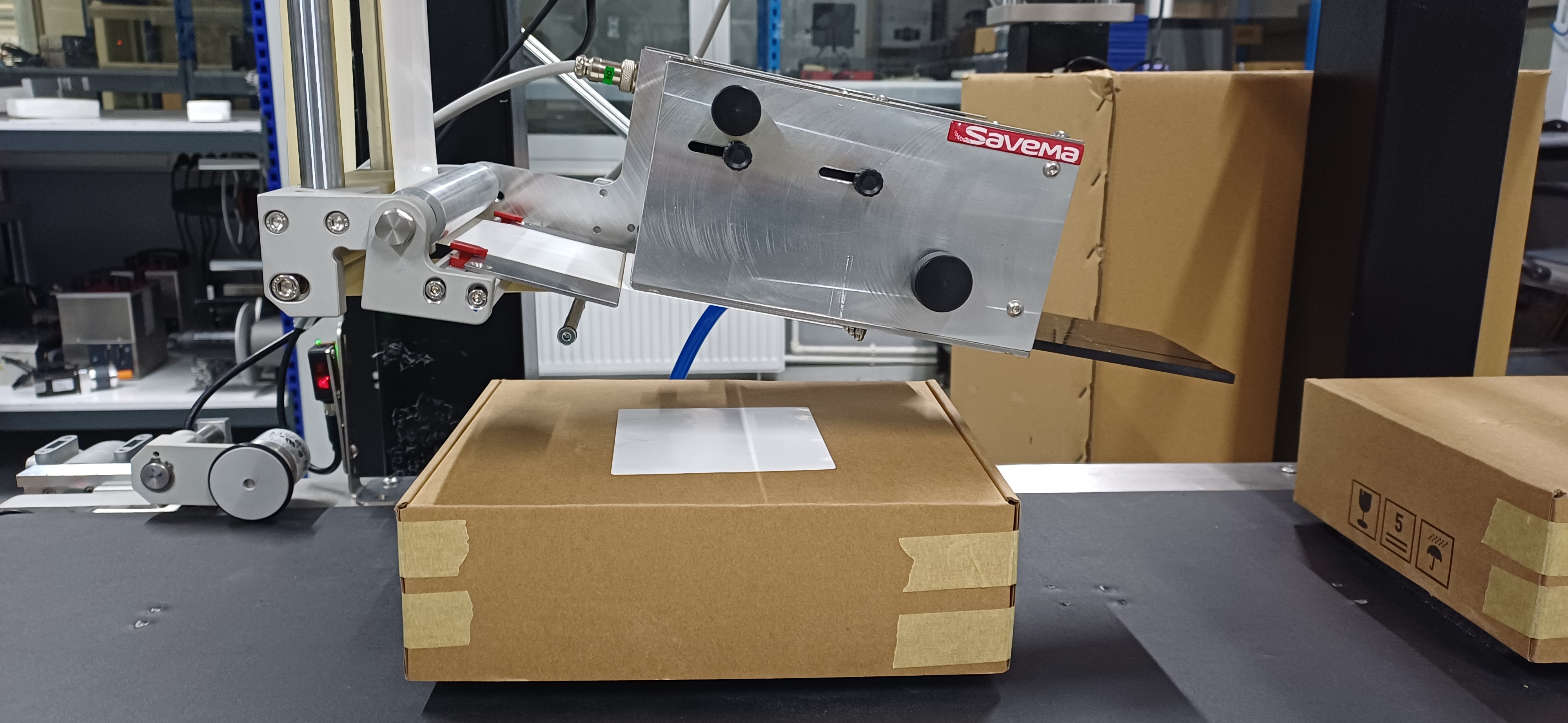

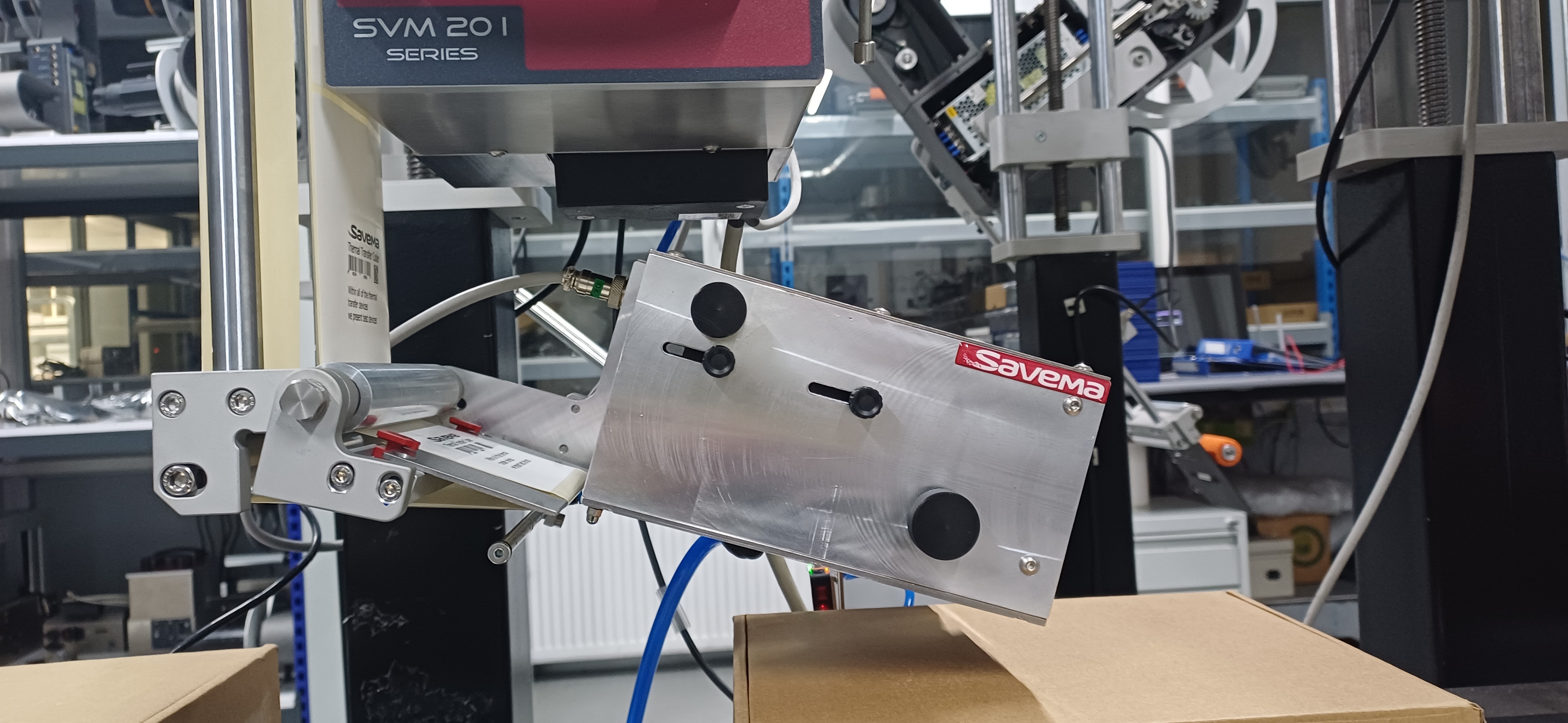

SAVEMA Blow Out Device with TTO & Dispenser

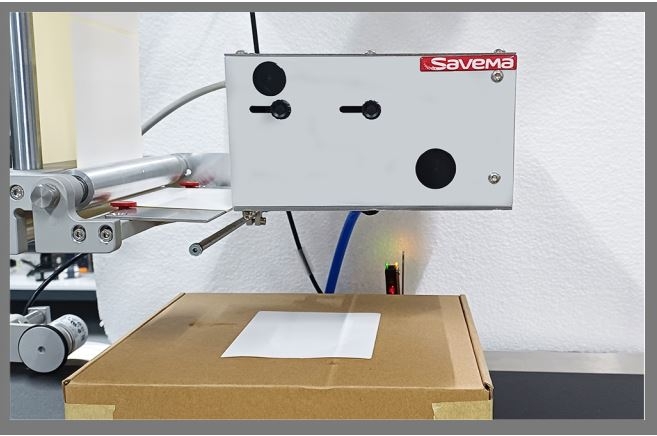

SAVEMA Blow Out System with Dispenser
